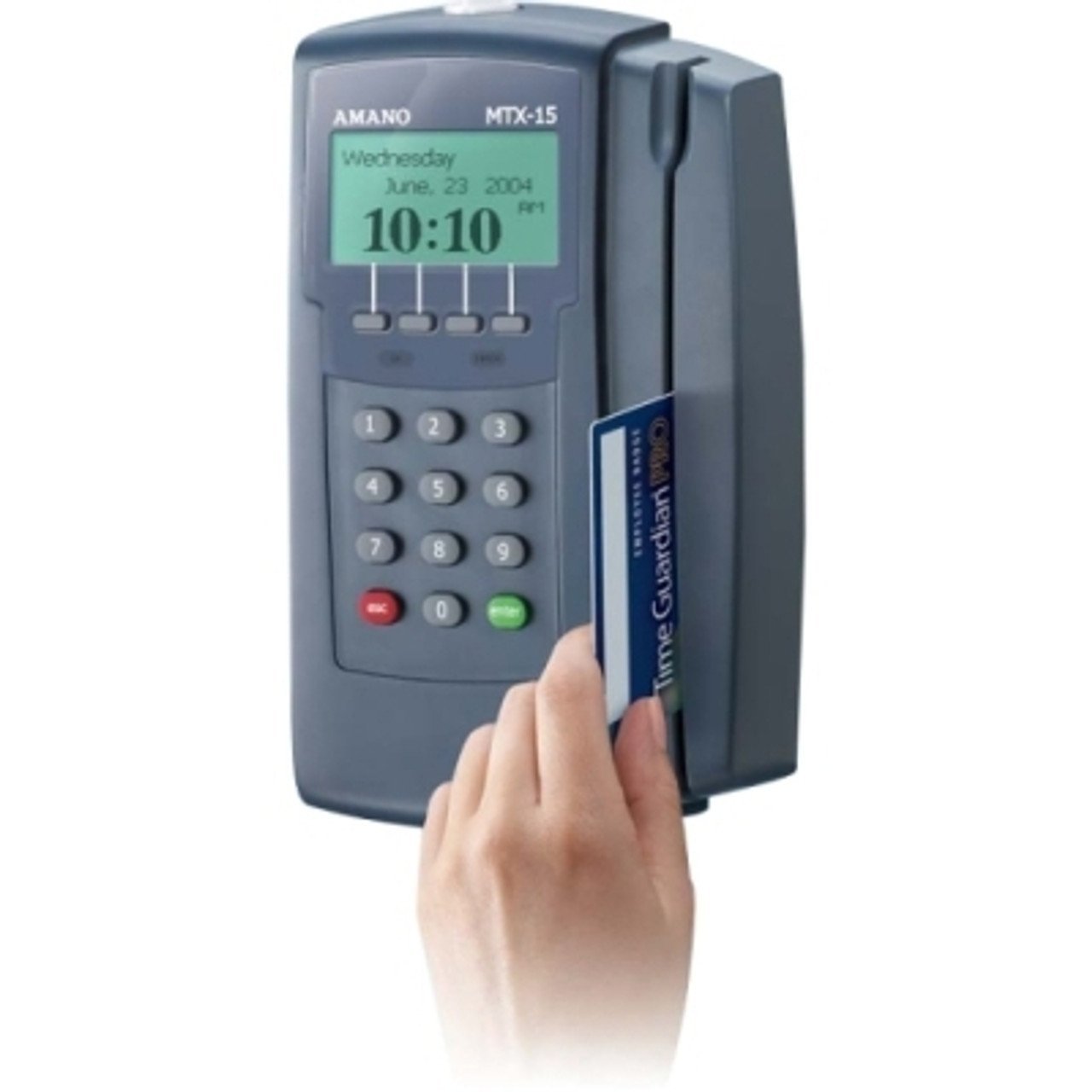

Amano MTX 15 Terminal With Cable

Amano MTX 15 Terminal With Cable

The Amano Time Guardian MTX-15 time and attendance system is an easy to use and affordable time keeping solution for small and medium sized businesses. Time Guardian is time tracking made simple. Featuring out of the box support for 100 employees, Amano’s Time Guardian can easily expand to support an unlimited number of employees, making the system a solid investment that grows with your business. Employees punch in and out using Amano’s proprietary magnetic stripe badges or via the time clock’s keypad. The punches are stored in the MTX-15’s memory until retrieved by the software via polling. The polling process retrieves the punches from the clock and updates employee information on the clock. Employees can review their hours directly at the clock freeing up valuable human resources personnel time. Once the punches are in the software, the Time Guardian’s rules engine automatically calculates and categorizes employee hours. It sorts employee punches to display regular, overtime, and double times. Editing punches and correcting missing punches is easy. Simply enter the date and time of the punch and save it!

Amano’s Time Guardian software also includes reports and payroll exporting. Create employee time card reports in PDF and Excel. Reports are customizable giving you the flexibility to select the what and how the information is displayed. Time Guardian’s direct integration with QuickBooks makes processing and preparing payroll even easier. For businesses who use QuickBooks, Time Guardian can automatically transfer employee work hours with the click of a button. This saves valuable time, money and eliminates human error associated with manually entering hours.

Features

Two punch options: Pin or badge entry

Accommodates weekly, bi-weekly, semi-monthly and monthly pay periods

Unlimited number of departments, pay policies, schedules and holiday assignments

Automatic data polling and time synchronization

Tracks and reports regular/overtime, absences, exceptions, wages, and tips

Auto process service permits scheduled terminal communications and reports

Comprehensive standard reports in PDF format, or an MS Excel export utility

Self installable via wizard

Signal relay for ringing bells and opening doors

Full operation power reserve (requires 6 AA batteries)

Overtime authorization capability

Password security for login protects sensitive employee data

Ships complete with terminal, Time Guardian software, 25 employee badges and 50′ cable with USB connector

Amano MTX 15 Terminal With Cable Specifications

Reader: Magnetic

Badges Type: Proprietary magnetic stripe badges

Employee badges size: 3.375″L x 2.215″W x 0.030″D

Swipes Capacity: 24,144 records

Weight: 6 lbs.

Environment: Indoor use only

Clock Accuracy: +3 seconds deviation per week (room temperature)

Power Failure Memory Protection: Built-in Lithium cell (up to 12 months of accumulate use)

Wall Power Adaptor: 110V AC/16.5V 1 A

Communication: Serial RS-232/RS-485, RJ-11 connector

Dimensions: 8.25″L x 4.25″W x 2.215″D

Power Input: 120 VAC, 50/60 Hz

Operating Temperature: 32°F to 113°F

Humidity: 10-90% relative humidity (non-condensing)

Memory Backup: 2 years continuous programming and punch memory without power

Full power reserve: 6 hours of full operation with 6 x AA Batteries (Alkaline)

Windows 2000/XP/Vista/Server2000, 2003, 2008 and Mac OSX platforms

Pentium 4 processor/speed minimum

1 GB RAM server memory, 512 MB client

700 MB server hard disk space, 100MB client

Screen display 800 x 600 pixels, small font

Available USB port and CD-ROM drive for Web and Internet connection
