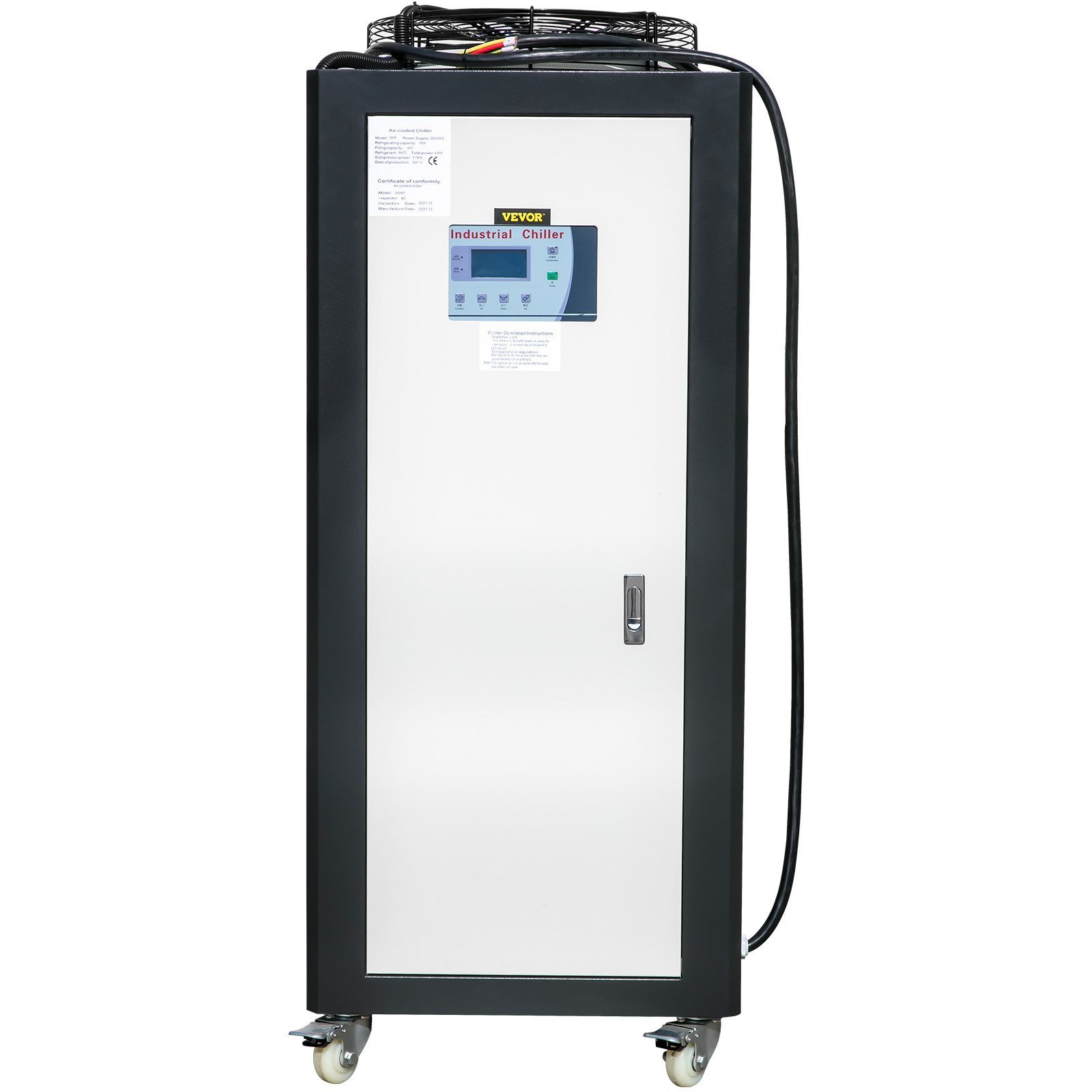

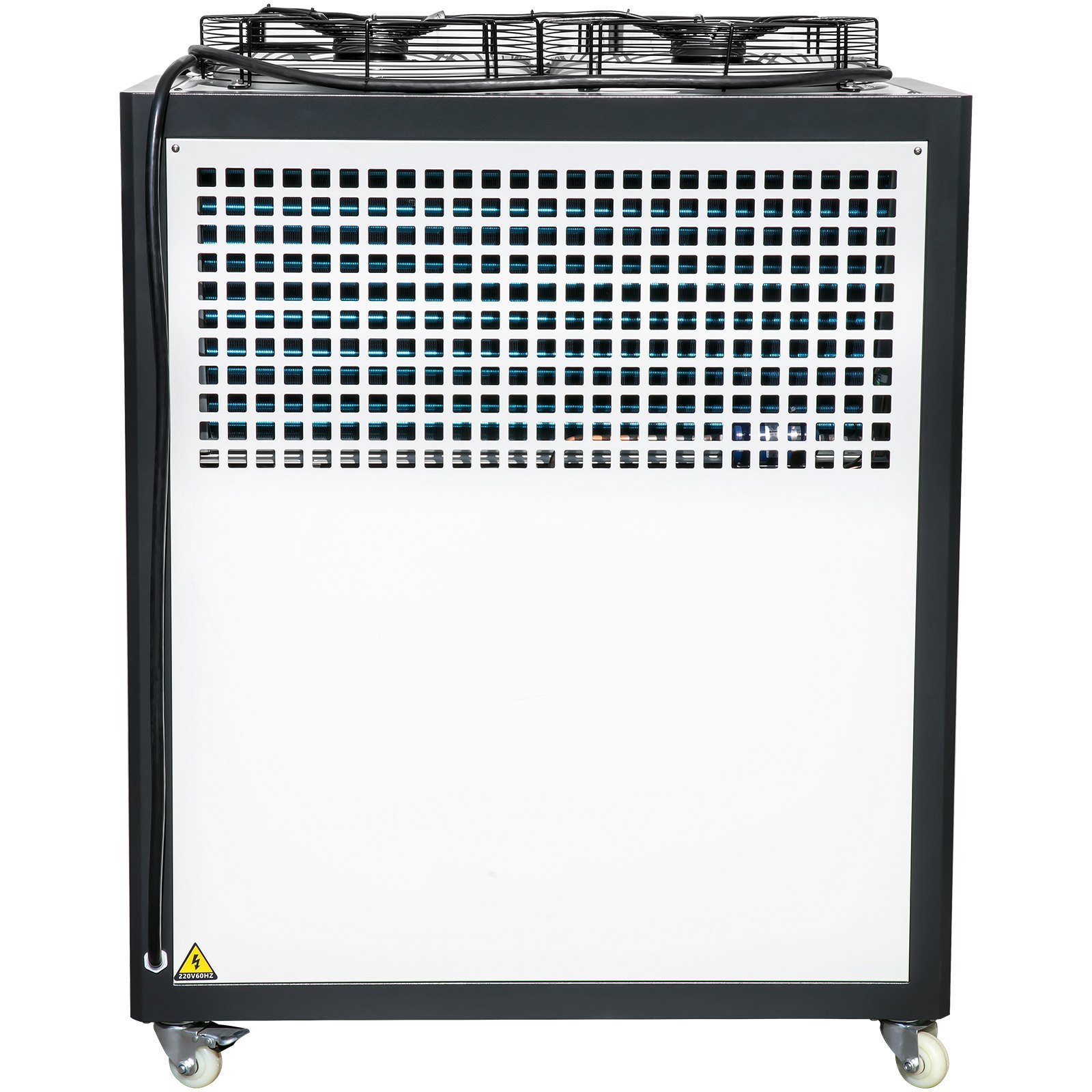

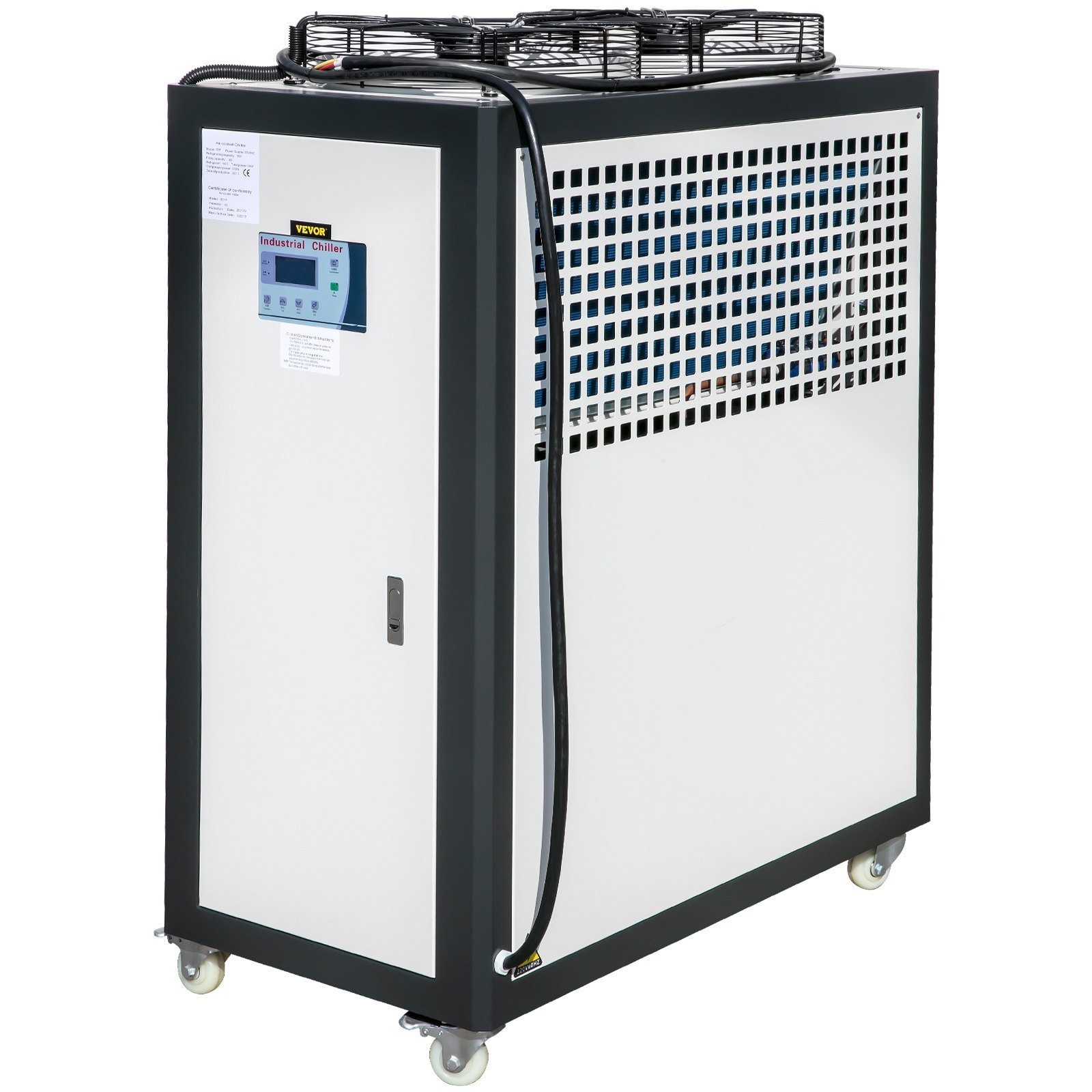

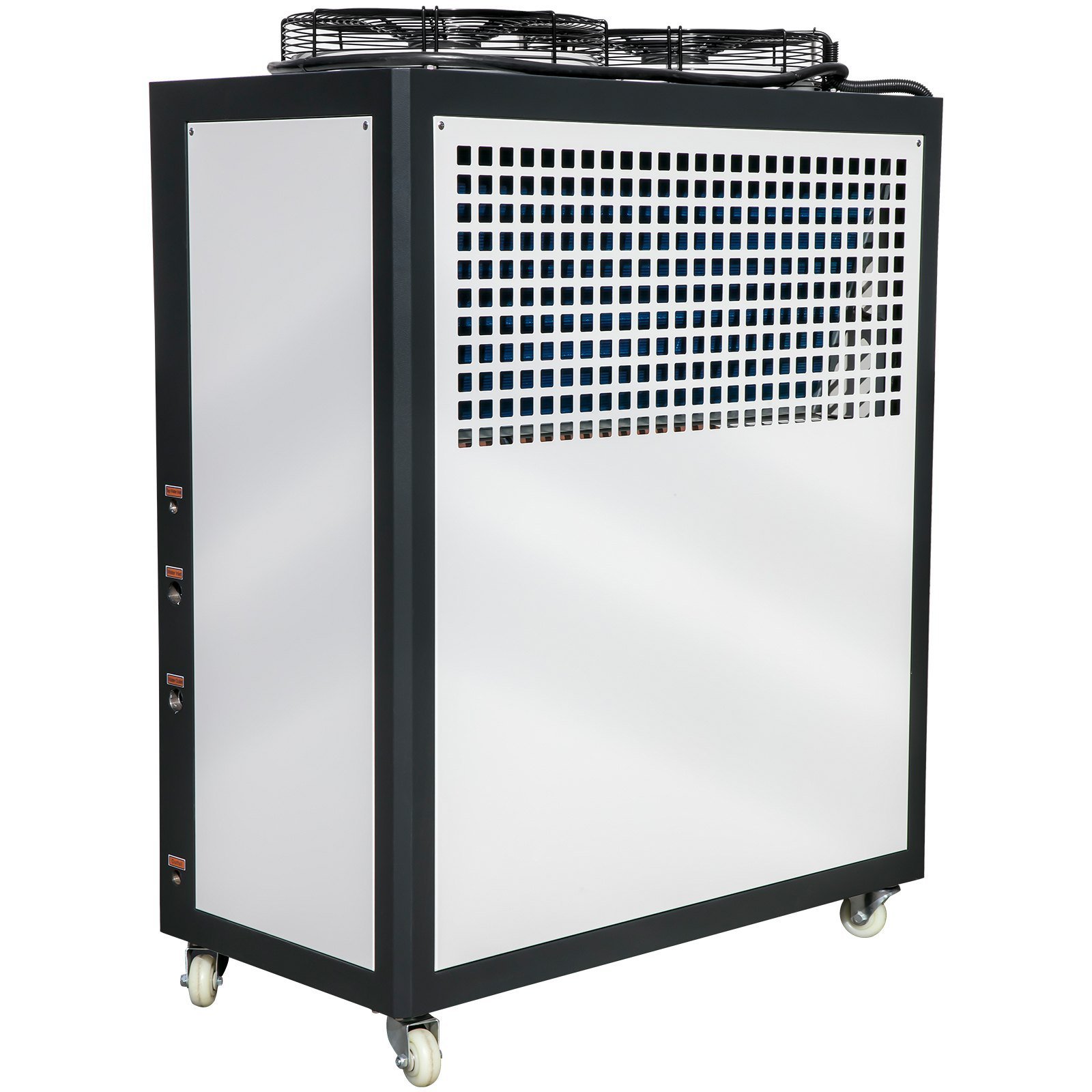

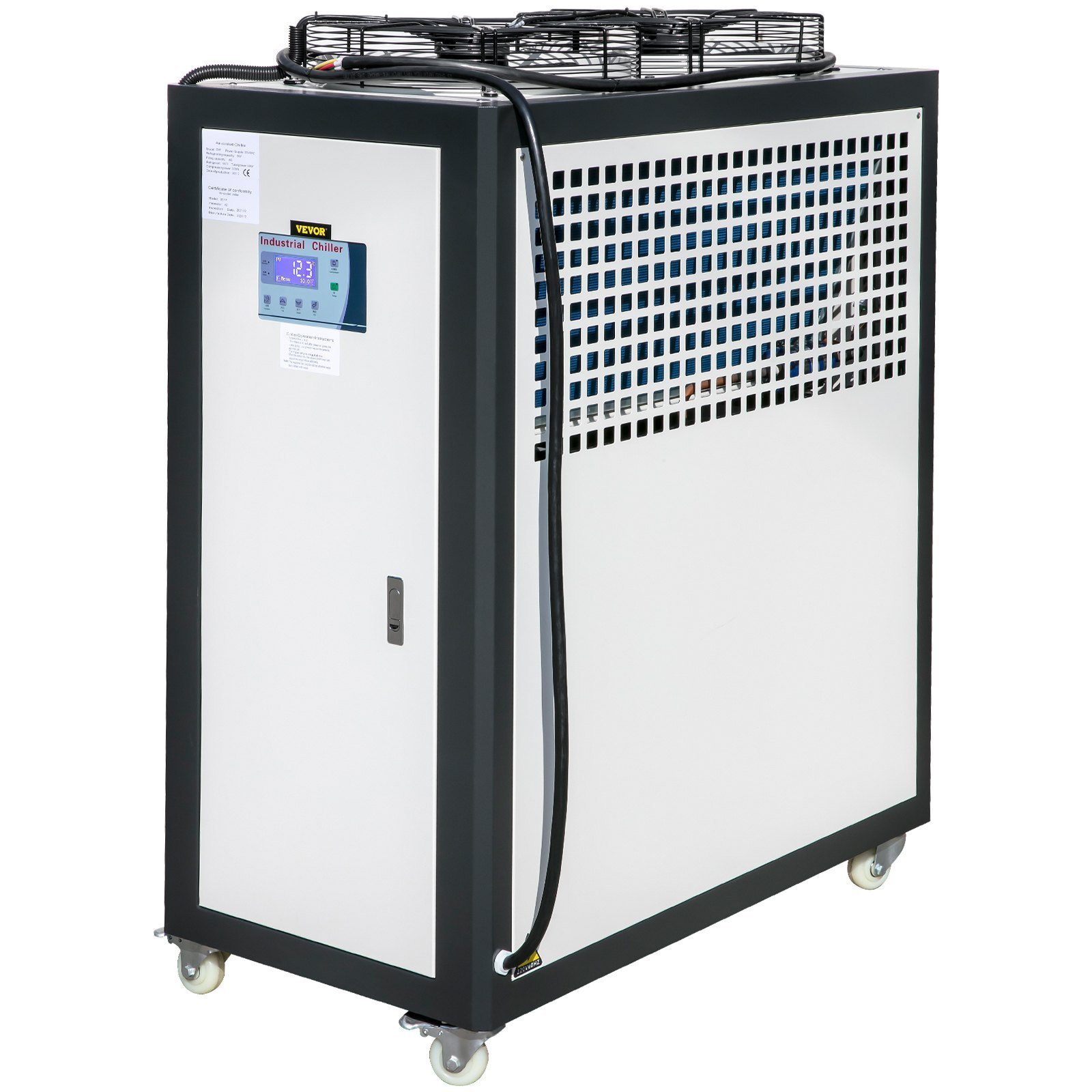

VEVOR Air-Cooled Chiller Industrial 5 Ton

VEVOR Air-Cooled Chiller Industrial 5 Ton, 5HP Panasonic Compressor, Finned Condenser Portable Conditioner, Micro-Computer Control & Built-in 53L Stainless Steel Water Tank for Plastic Electric

Product Features:

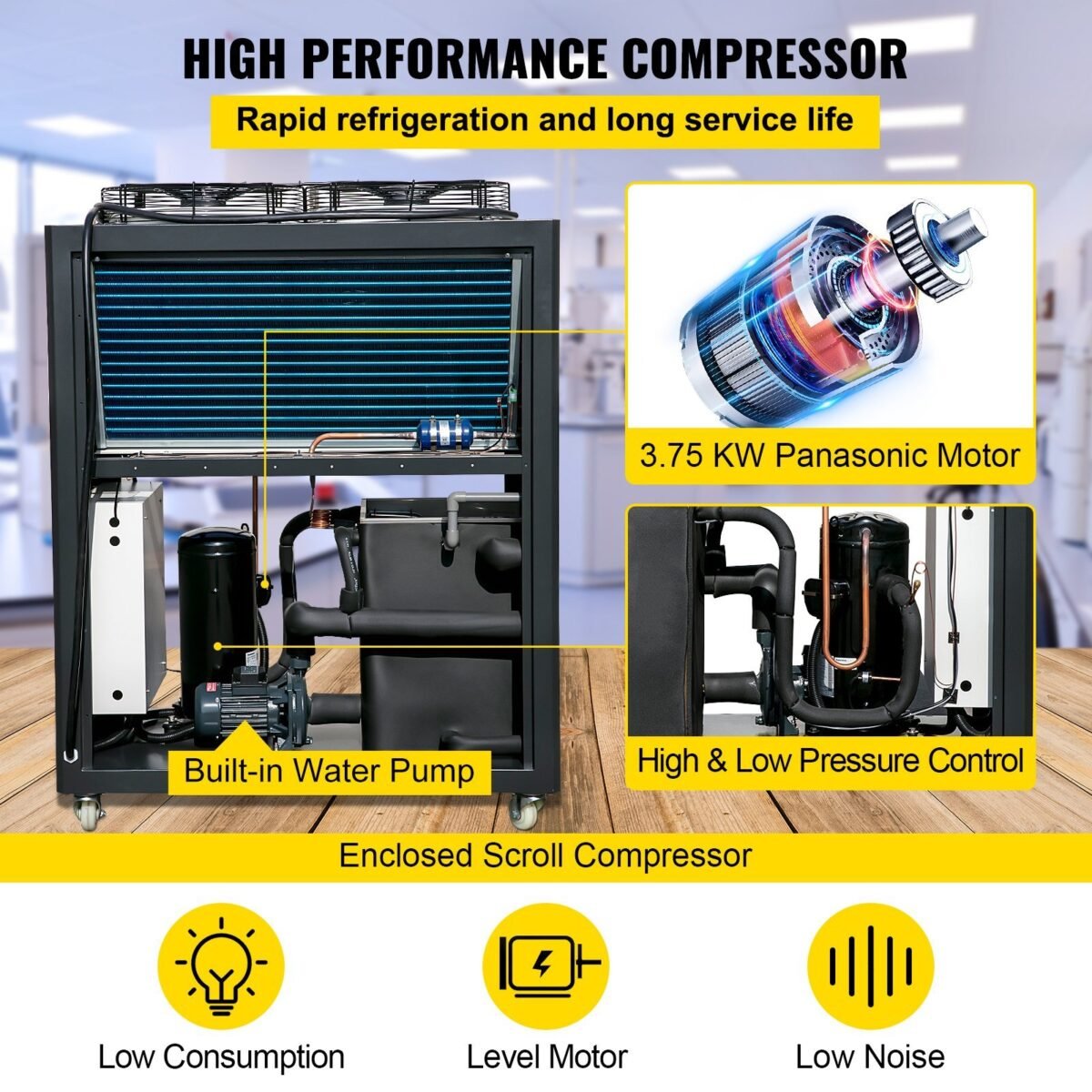

High-Performance Compressor: The portable chiller applies a 5HPPanasonic compressor that ensures the chiller will operate reliably and stably. Water flow is 58 L/m, and pipe diameter is DN1 in / DN25 mm, less vibration and noise. Built-in 53L stainless steel water tank for your facilitated operation.

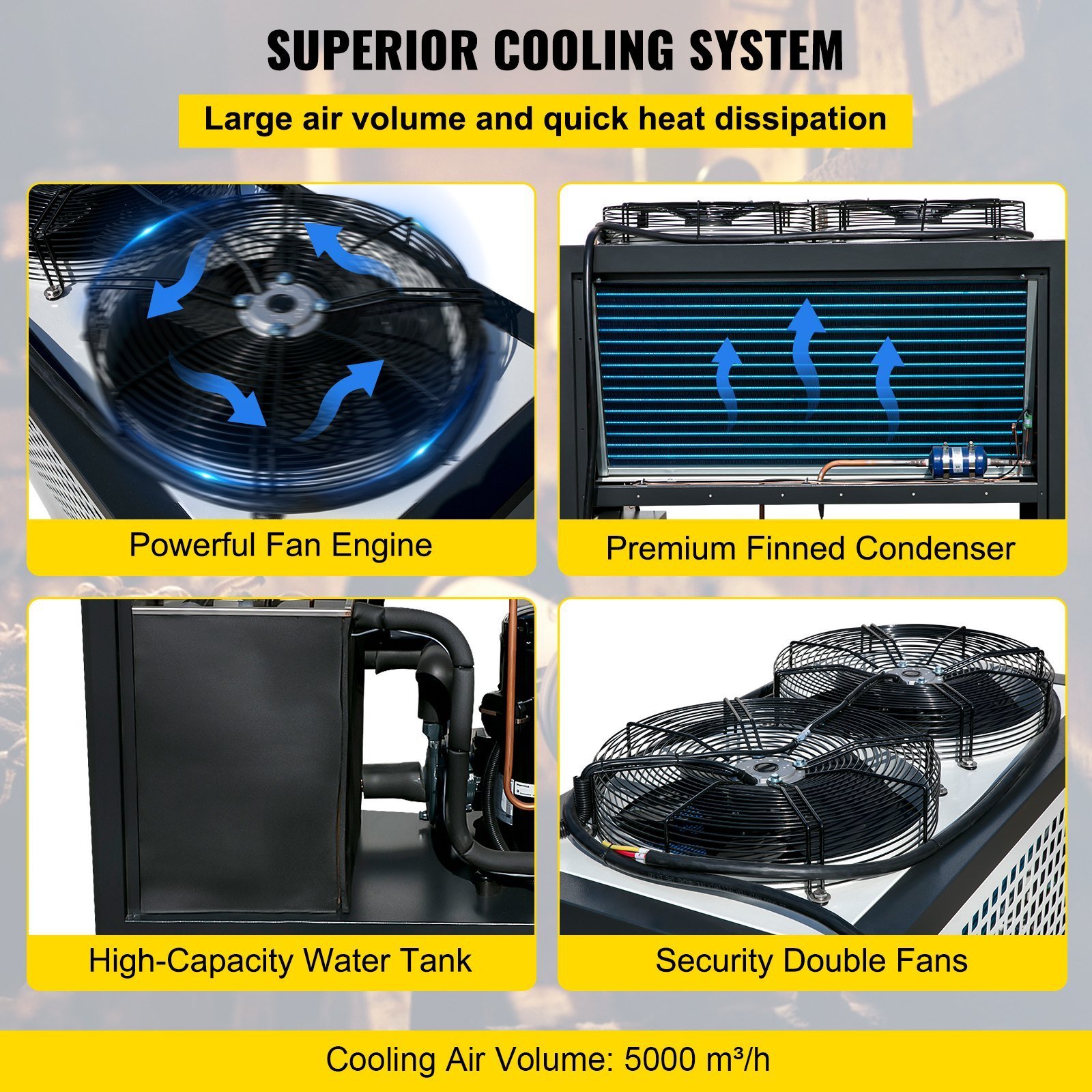

Powerful Cooling: Its 3.75 KW compressor can cool up to 12900 Kcal per hour. The 53L water tank is enclosed to reduce evaporation and provides long-term service between refills.

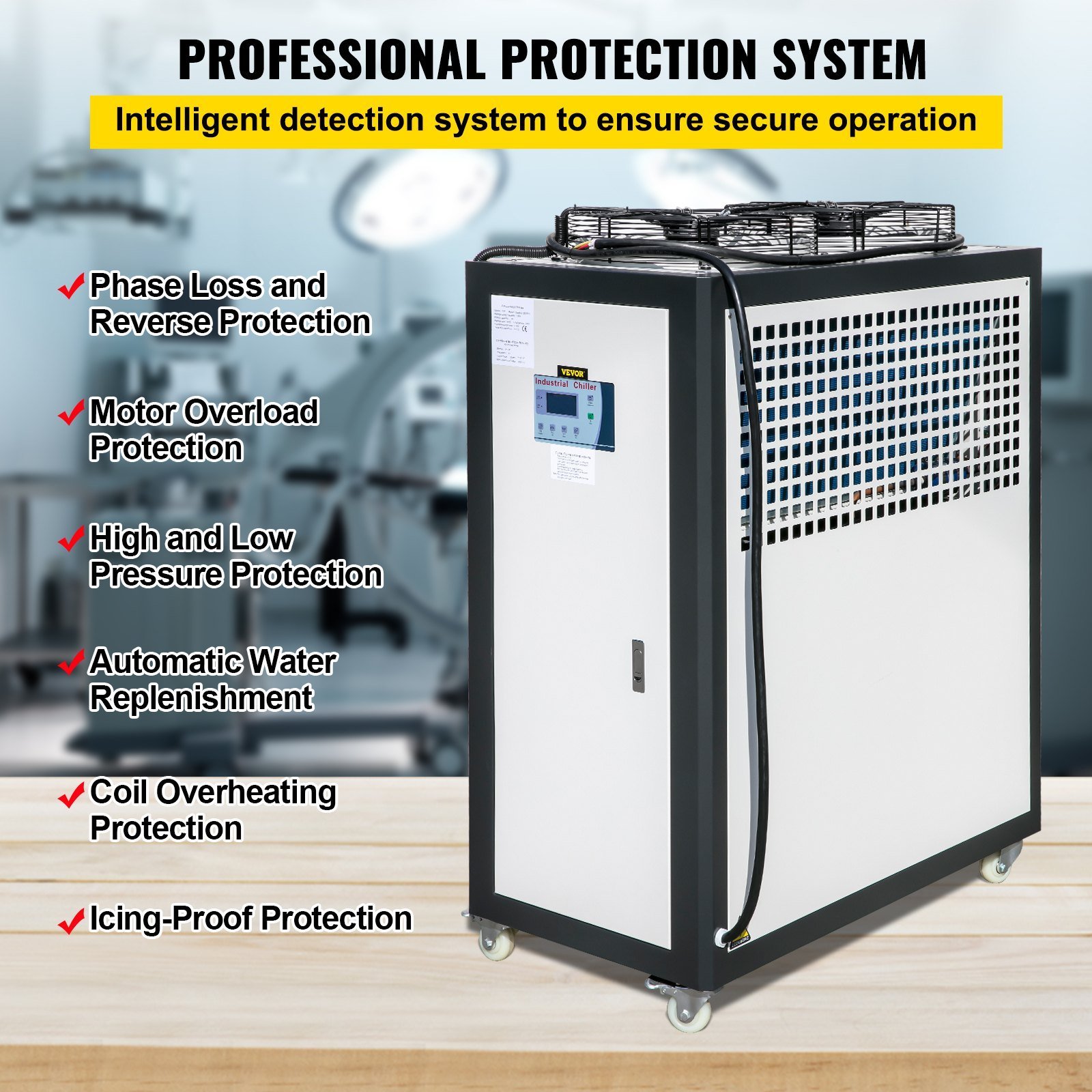

Professional Protection System: Including an overload protector, high and low-pressure switch, electronic alarm prompt functions, automatic water replenishment. The environmental temperature must be less than or equal to 40℃.

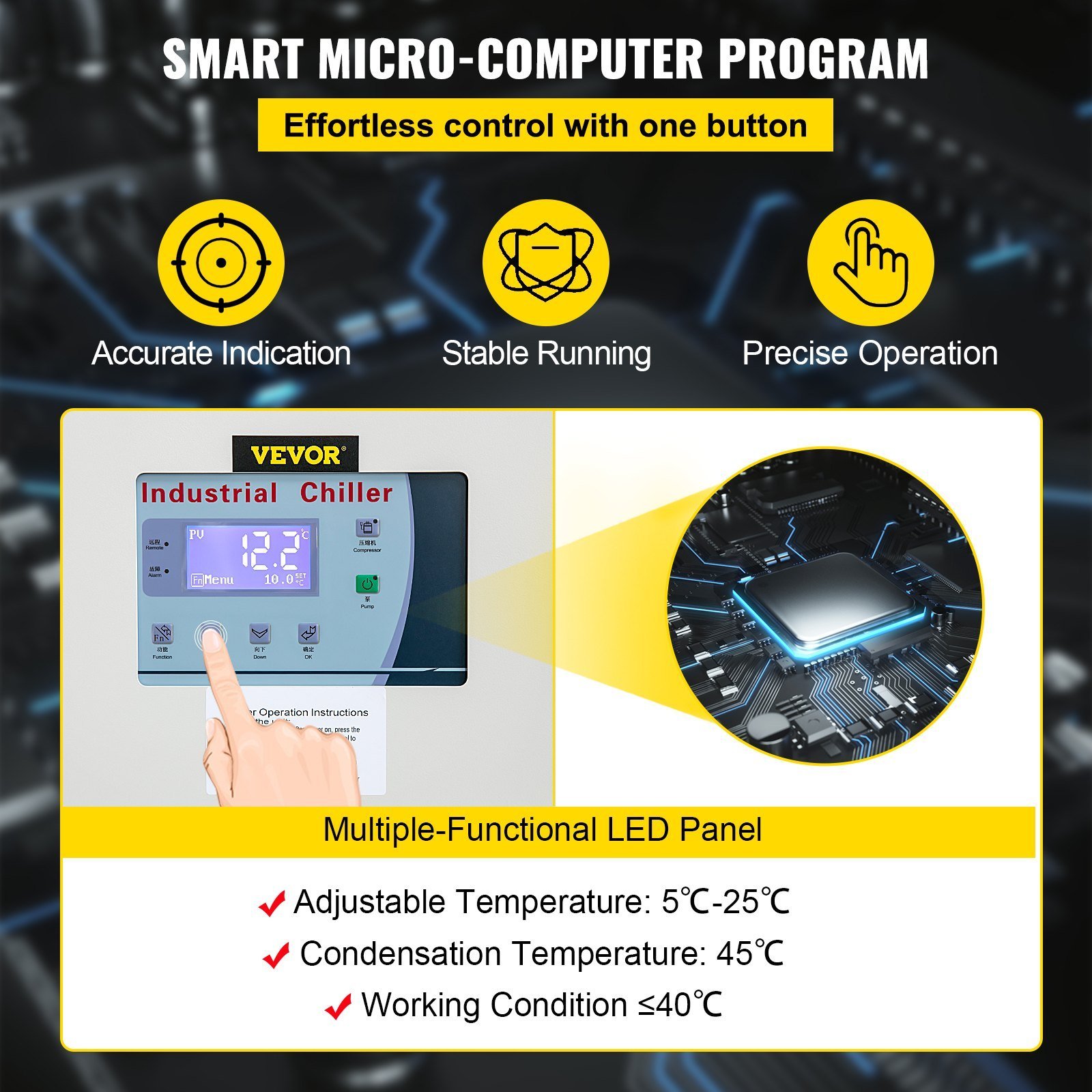

Smart Micro-Computer Control: Multi-functional control table includes intelligent LCD, microcomputer control, power buttons for compressor and condenser. A simple one-key rule makes operation convenient and efficient. The adjustable temperature ranges from 5℃ to 25℃.

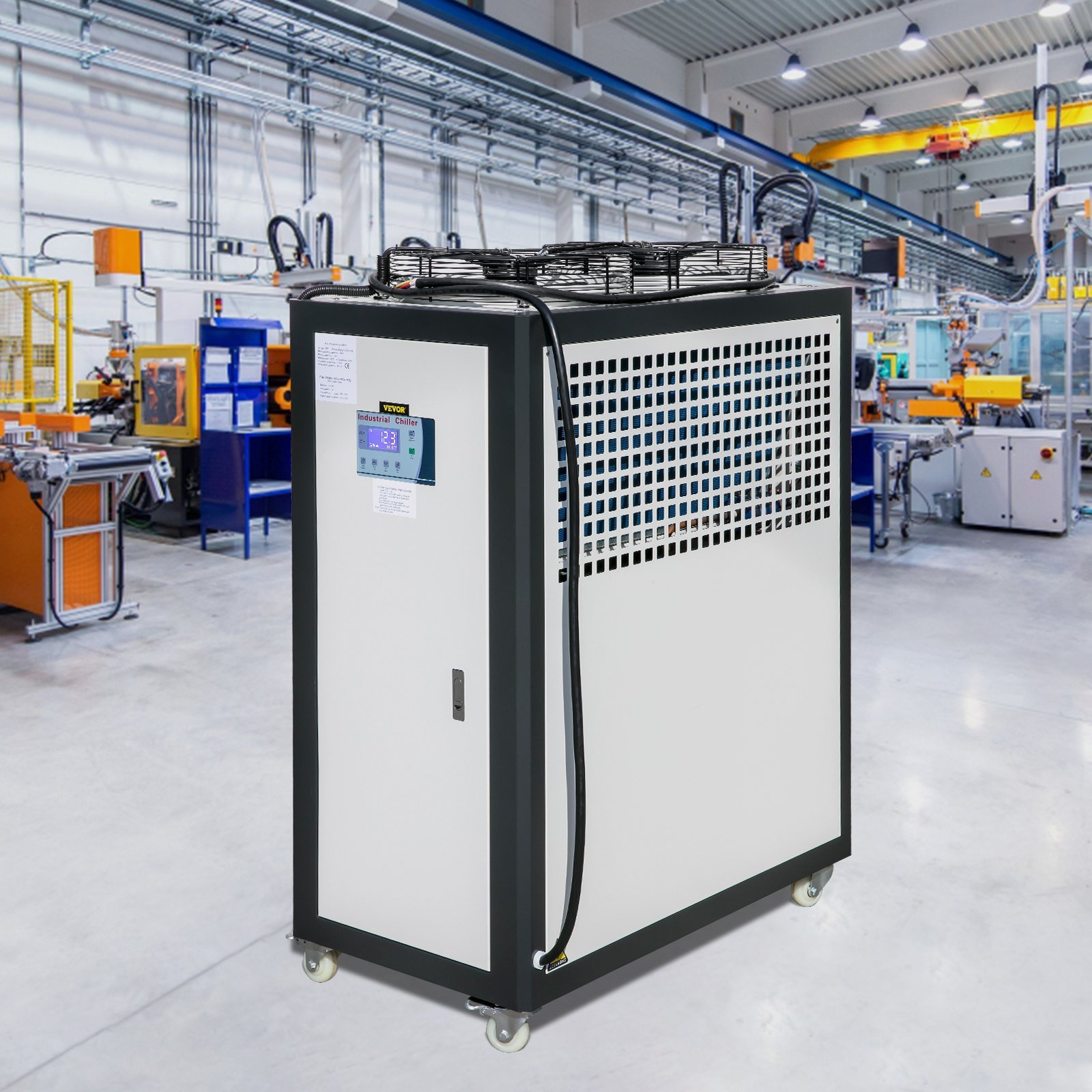

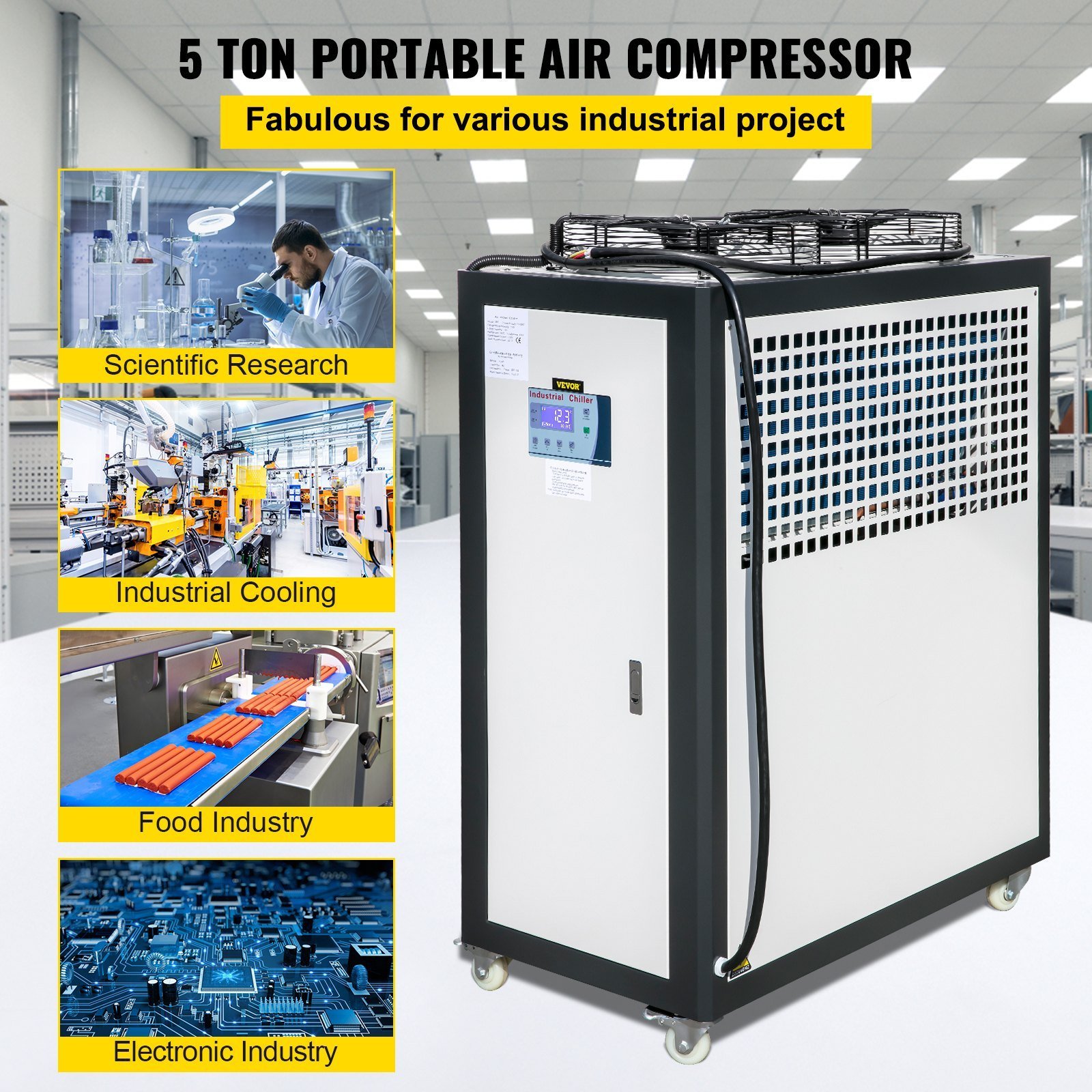

Versatile Application: The easy setup industrial chiller is widely used in electronics, electroplating, food, machinery, laboratory, business card printing, and other industries. An air-cooled chiller can accurately control the temperature of a plastic forming mold to shorten the forming cycle and accelerate product setting. It is an essential piece of configuration equipment for modern industries.

Specifications

Power: 220V / 60Hz / 3P
Regulate Temperature: 5℃ – 25℃
Condensation Temperature: 45℃
Compressor Type: Fully Enclosed Vortex
Compressor Motor Power: 5HP / 3.75KW
Tank Capacity: 53L
Cooling Capacity: 15KW / 12900Kcal/h
Heat Exchange Tube Material: Copper
Fan Motor Power: 0.36KW
Pipe Diameter: 0.2 in / 5 mm
Pump Motor Power: 0.5HP
Pump Head: 62.34 ft / 19 m

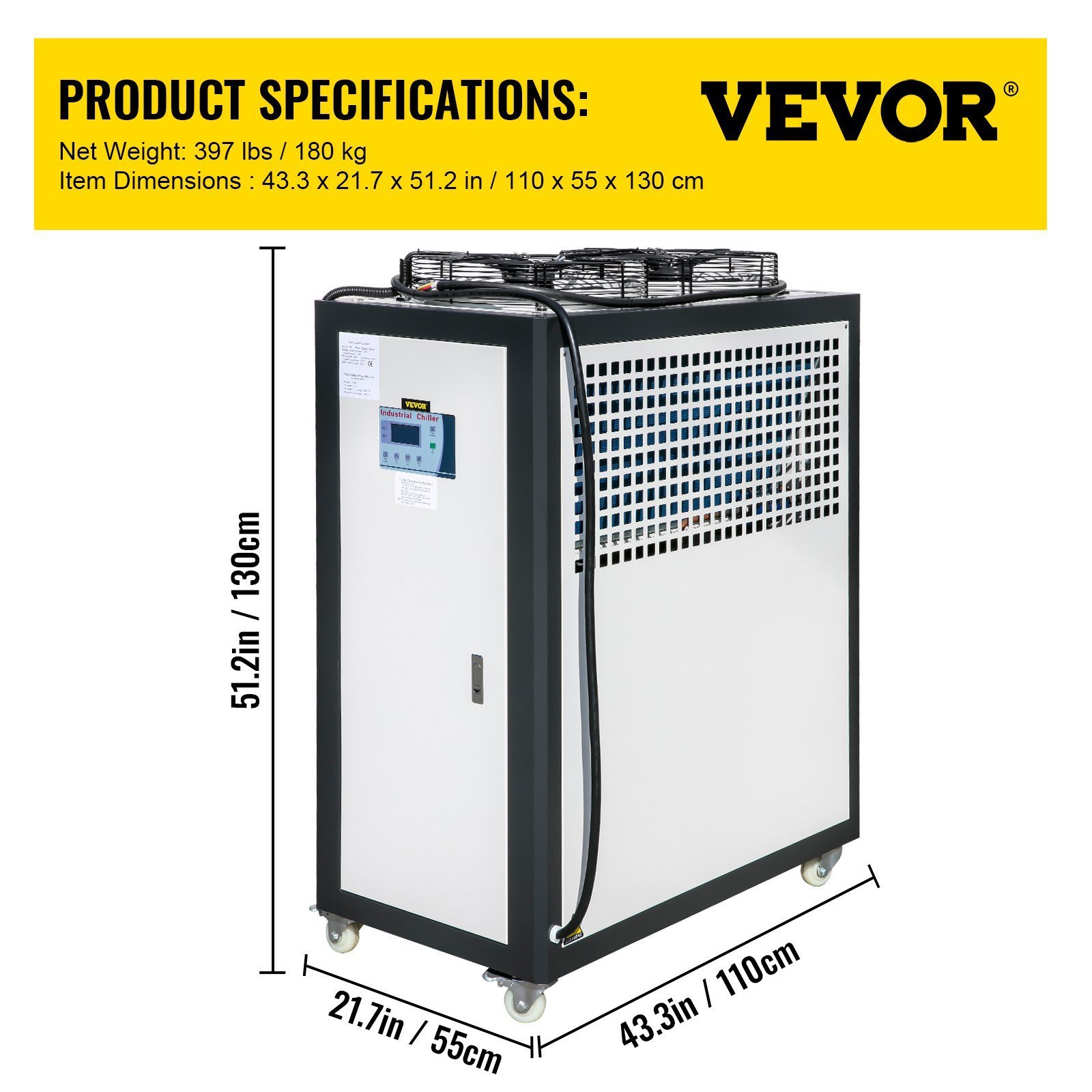

Net Weight: 397 lbs / 180 kg
Item Dimensions (L x W x H): 43.3 x 21.7 x 51.2 in / 110 x 55 x 130 cm
