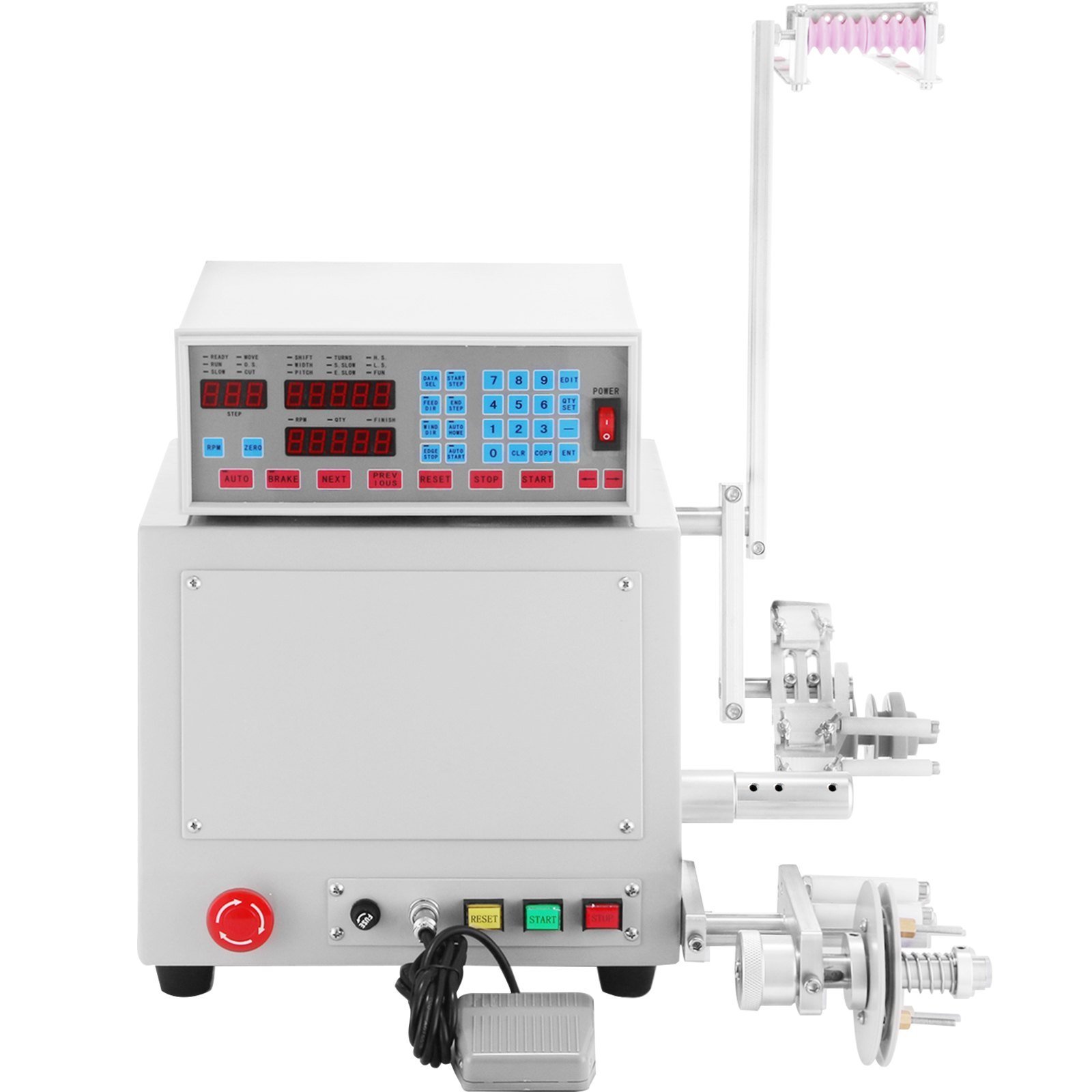

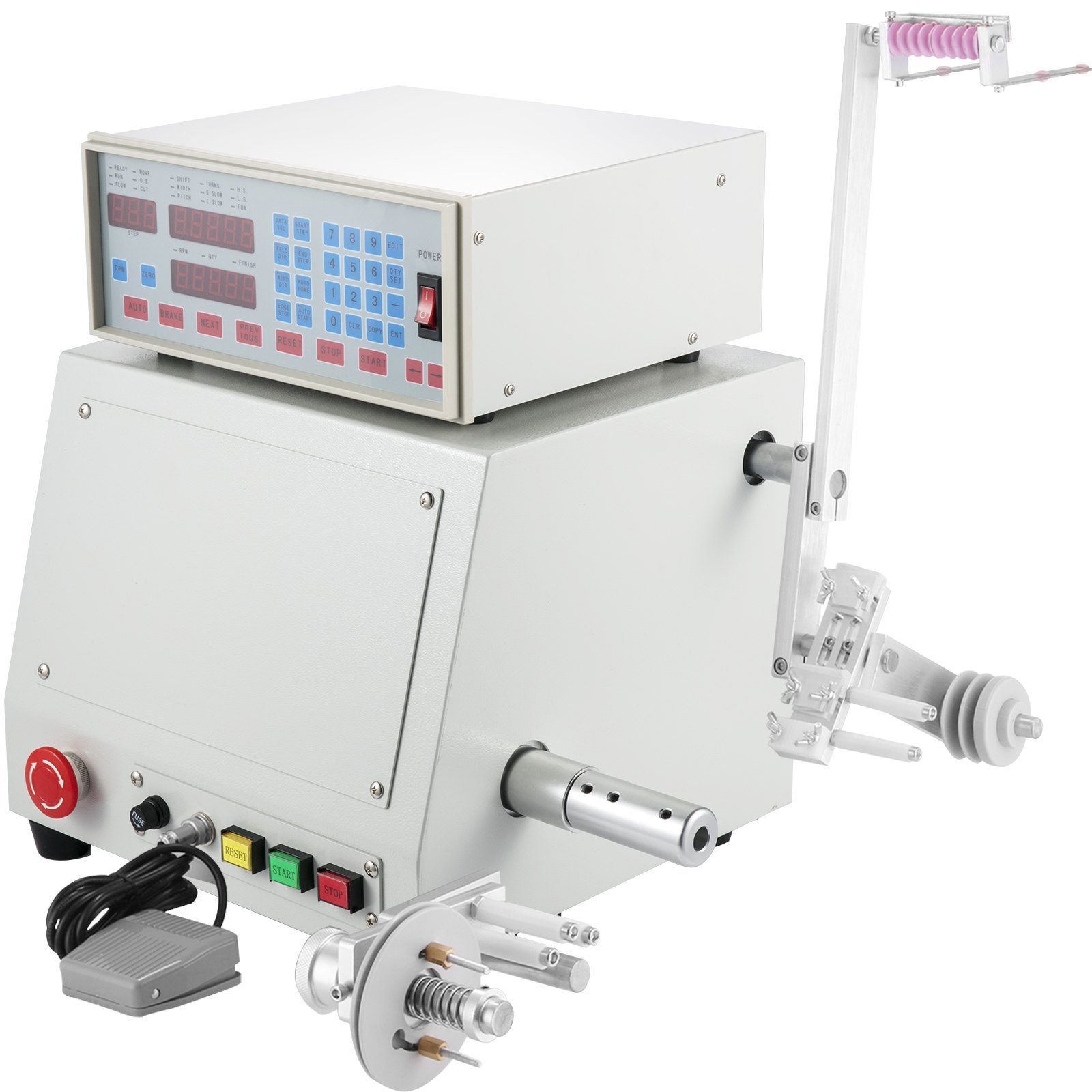

VEVOR Computer Cnc Automatic Coil Winder

VEVOR Computer Cnc Automatic Coil Winder Winding Machine For 0.03-1.2mm Wire 110v

Product Features:

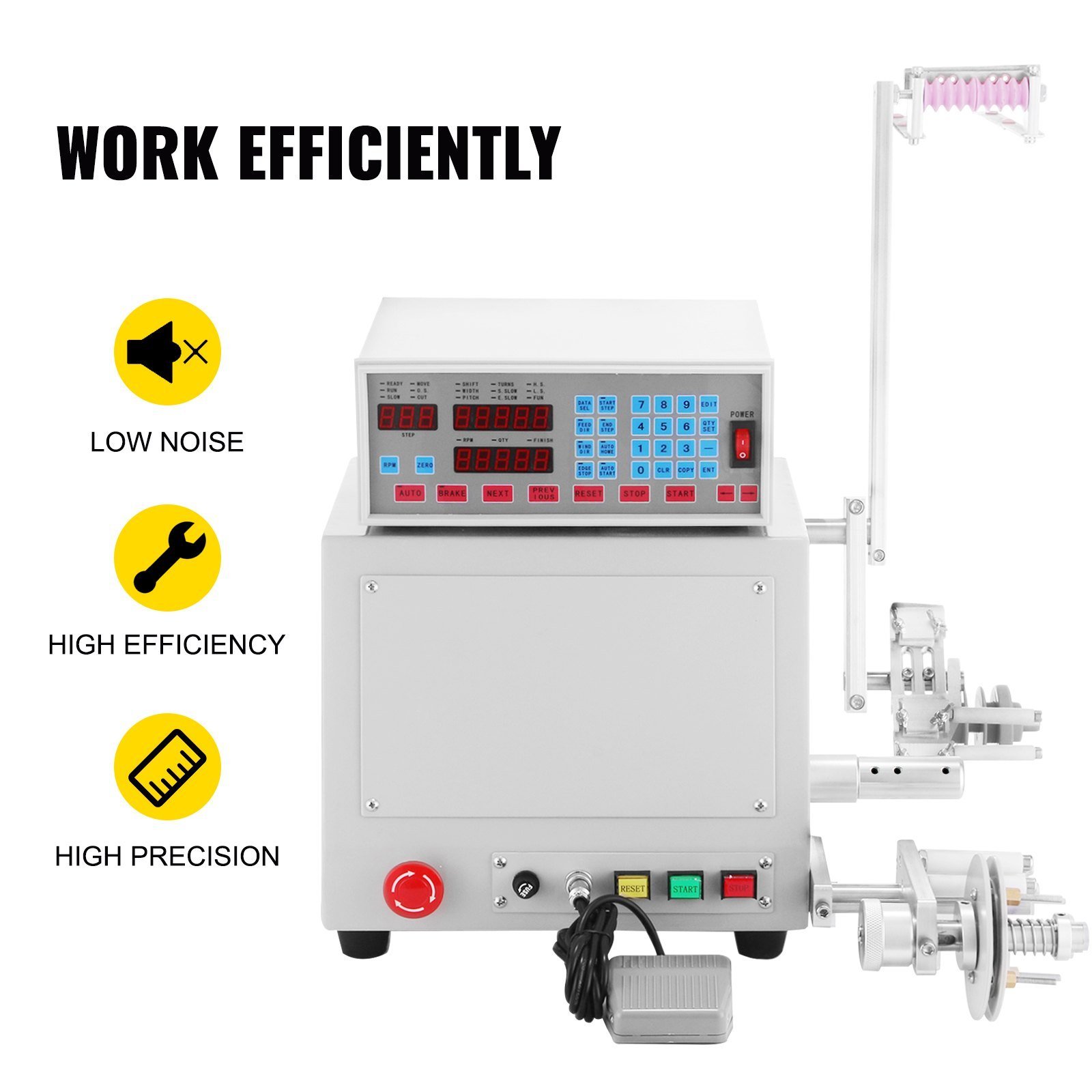

【PREMIUM PERFORMANCE】- Our CNC automatic winding machine adopts a step-servo motor driven by the constant current circuit, which completes the winding process with high speed and high precision. The guiding traverse shaft provides 99-steps moving speed selection.

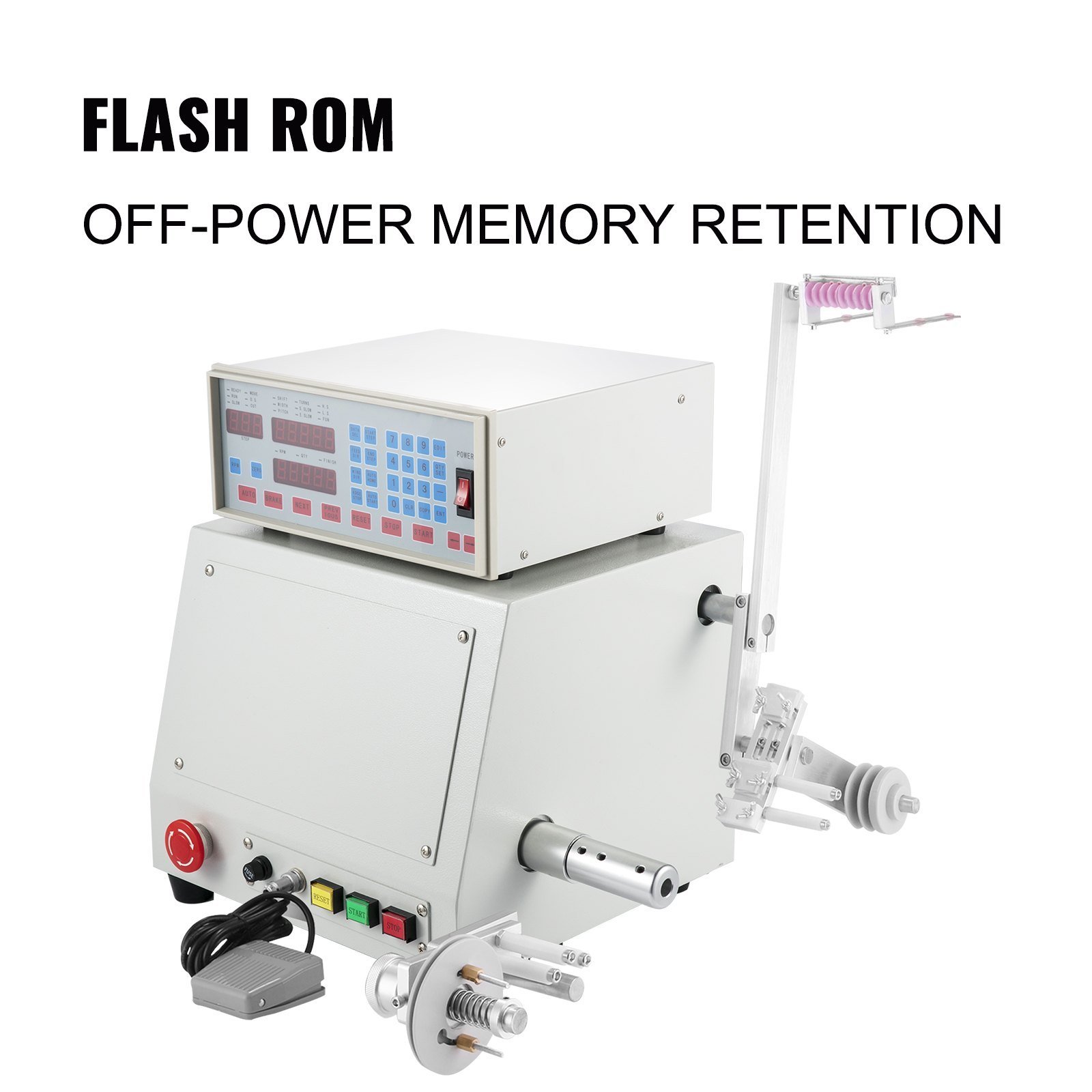

【AUTOMATIC FUNCTION】- Self-inspecting functions, including the equipment’s errors, excessive speed tracking, and the calibration of the speed, can automatically reduce the winding speed to a stable state. Memory capacity accommodates 999 sets of parameters with off-power memory retention.

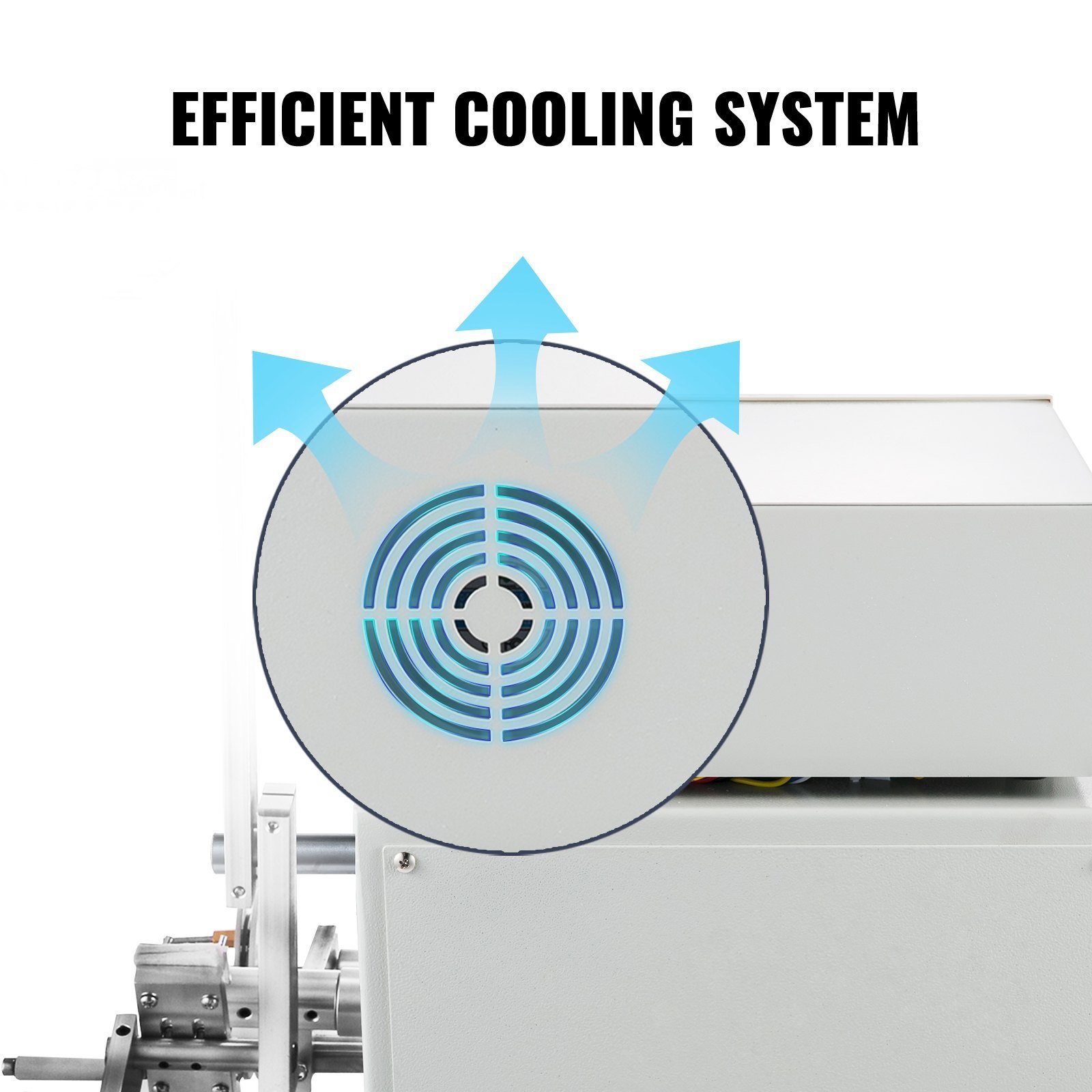

【INTEGRATED DESIGN】- This coil winder features an integrated design that can achieve size reduction: putting stepper motor driver, DC motor speed controller, brake and power supply control circuits, and cooling system into one control box.

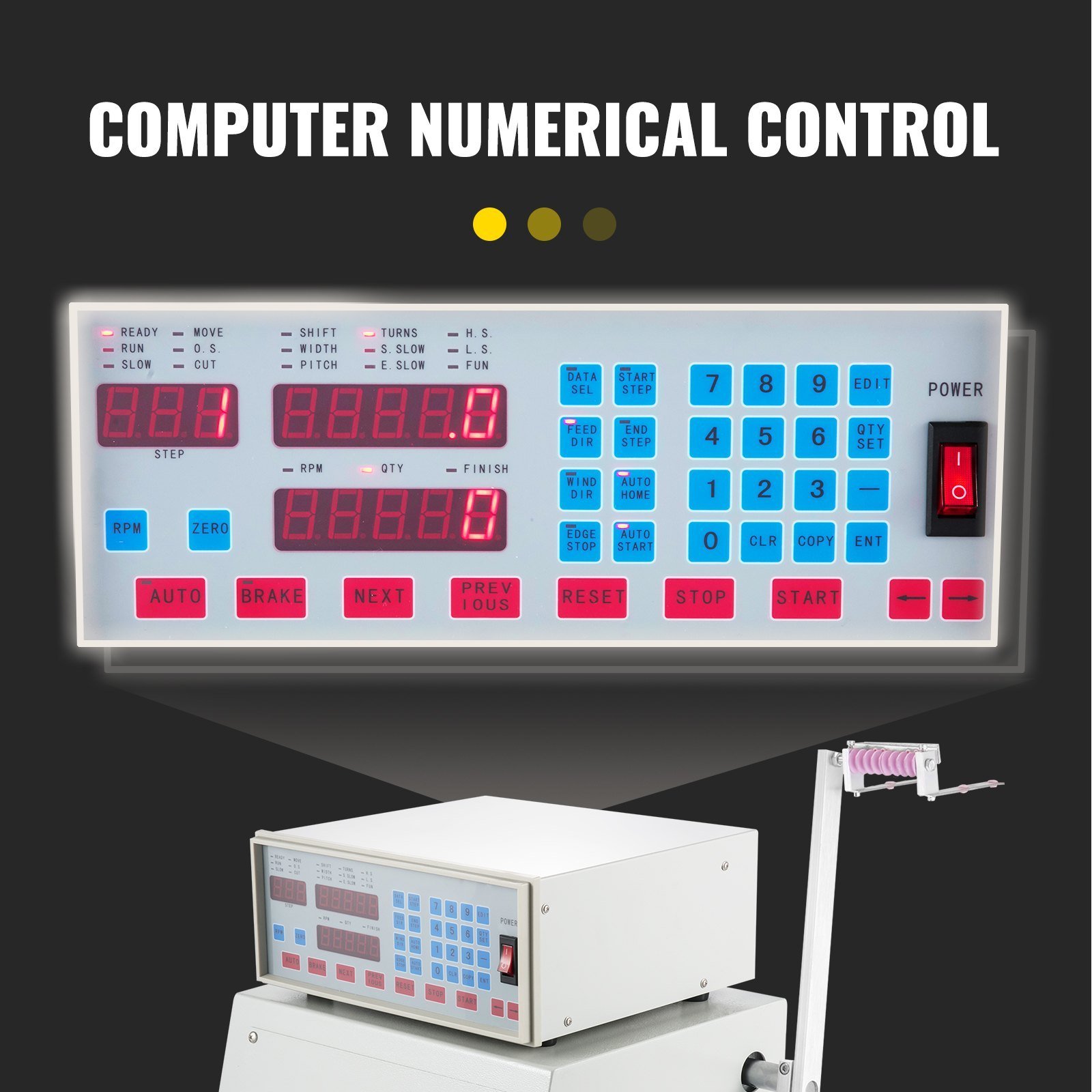

【EASY TO OPERATE】- With a CNC micro-computer controller, our winding machine is convenient for you to set the parameters such as starting point, winding displacement width, circles, speed of starting the winding, stopping slow-speed, winding speed, etc.

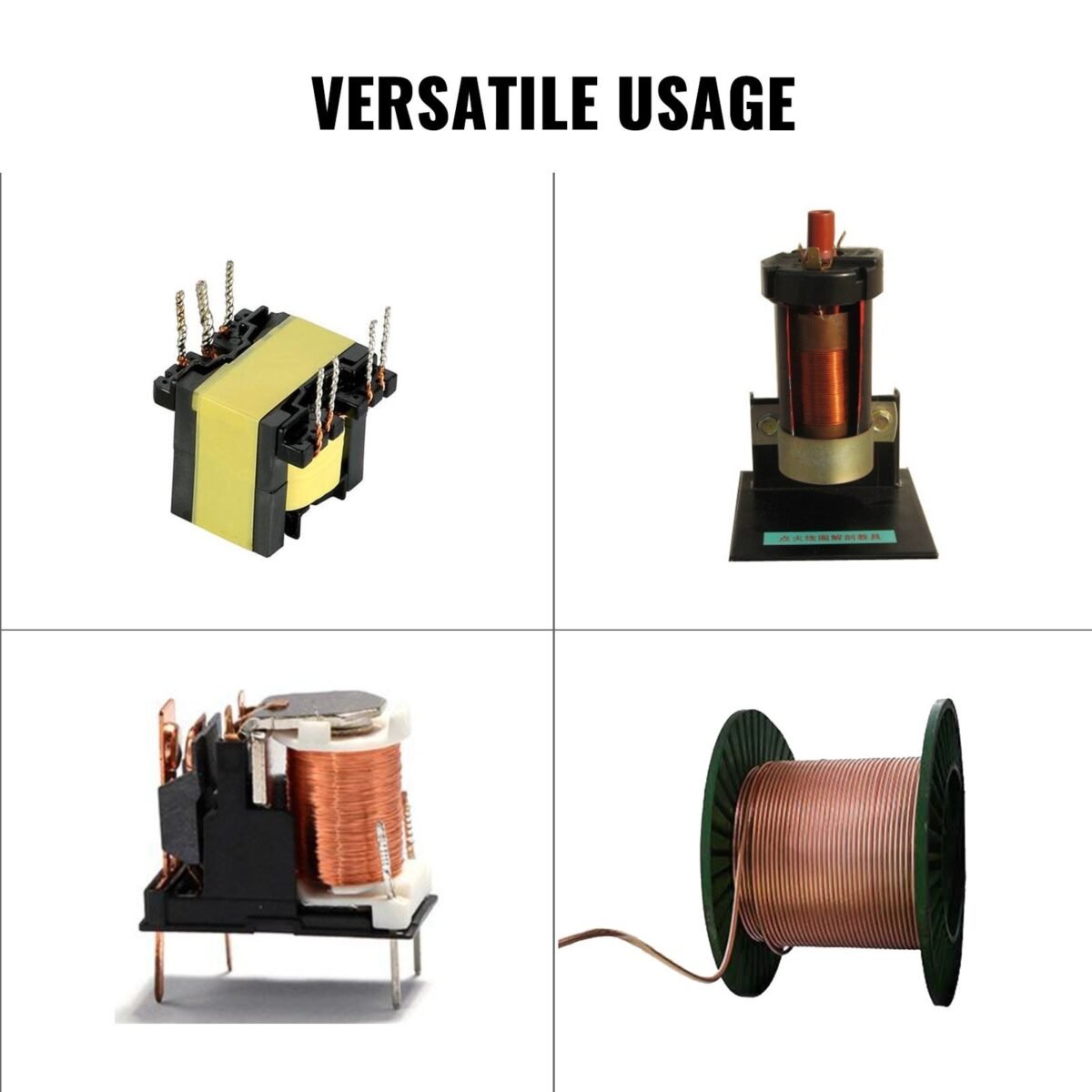

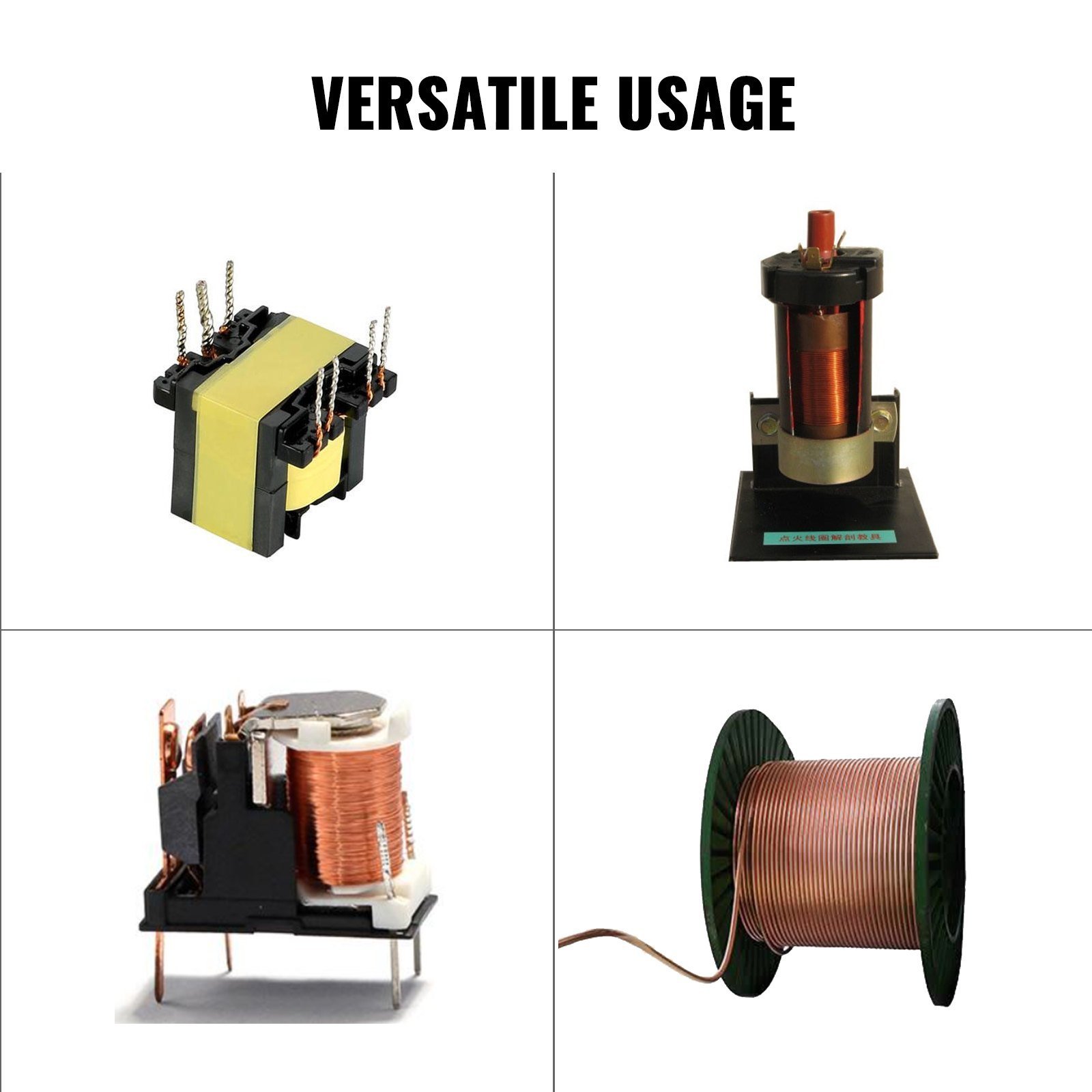

【WIDE APPLICATION】- Fit for 0.03-1.2 mm wire, this automatic wire coil winding machine is widely applied for medium or small transformer, relay, communication coil, ignition coil, and other winding products

Specifications

Power Voltage: Single Phase AC 110 V 60 HZ
Winding Displacement Machine: Step-servo Motor
Spindle Motor: Brushless DC 400 W
Wire Diameter: 0.03-1.2 mm
Maximum Winding Width: 108 mm (4.3″)
Maximum Framework Diameter: 200 mm(7.9″)
Maximum Turning Speed: 6000 circles/min, Speed Adjust Function
Storage Winding Groups: 999 Groups
Counting Resolution: 0.1 Circle
Complete Appliance Weight: 35 kg

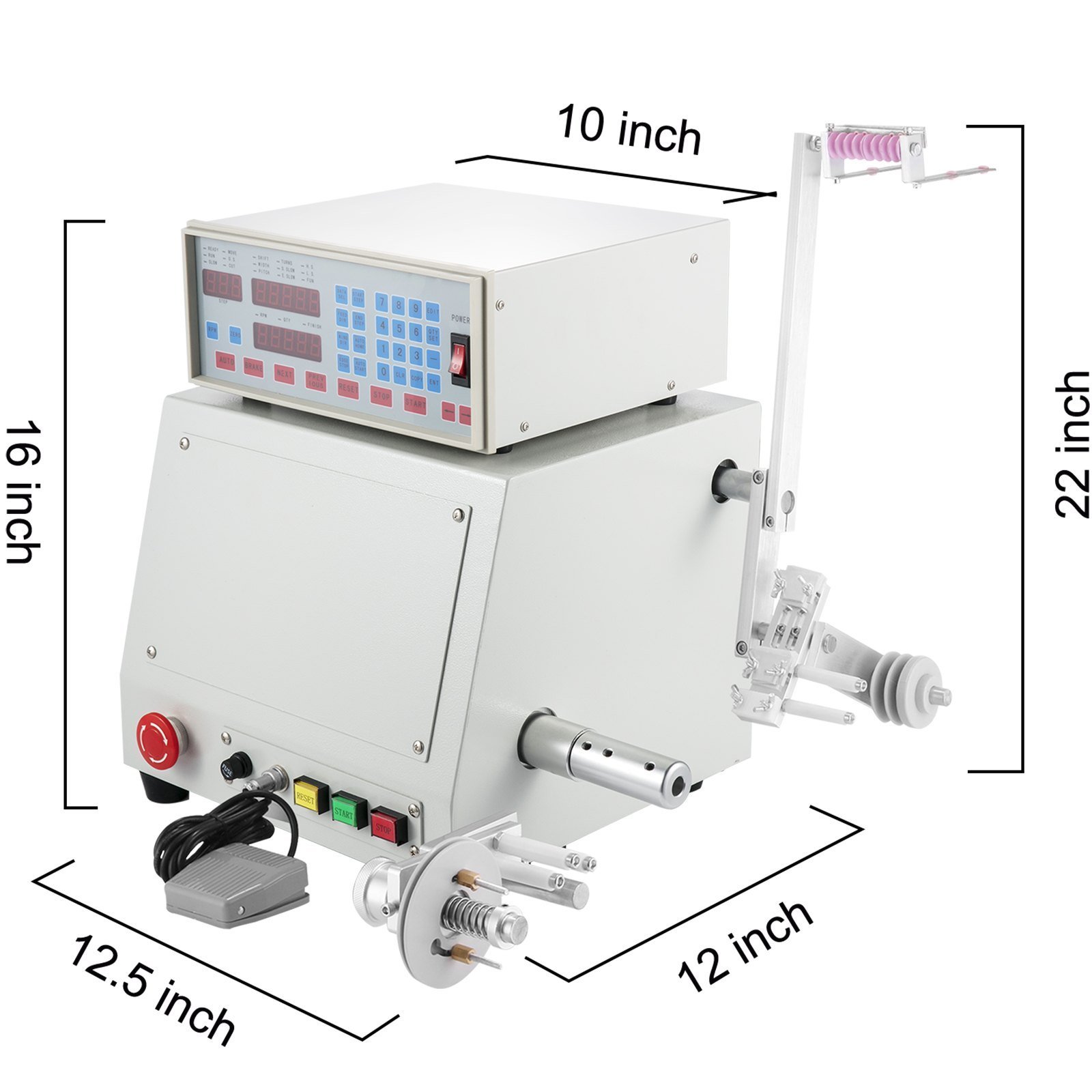

Product Size: 317 x 305 x 406 mm (12.5″ x 12″x 16″)
Package Size: 550 x 480 x 530 mm (21.6″ x 18.9″ x 20.9″)
