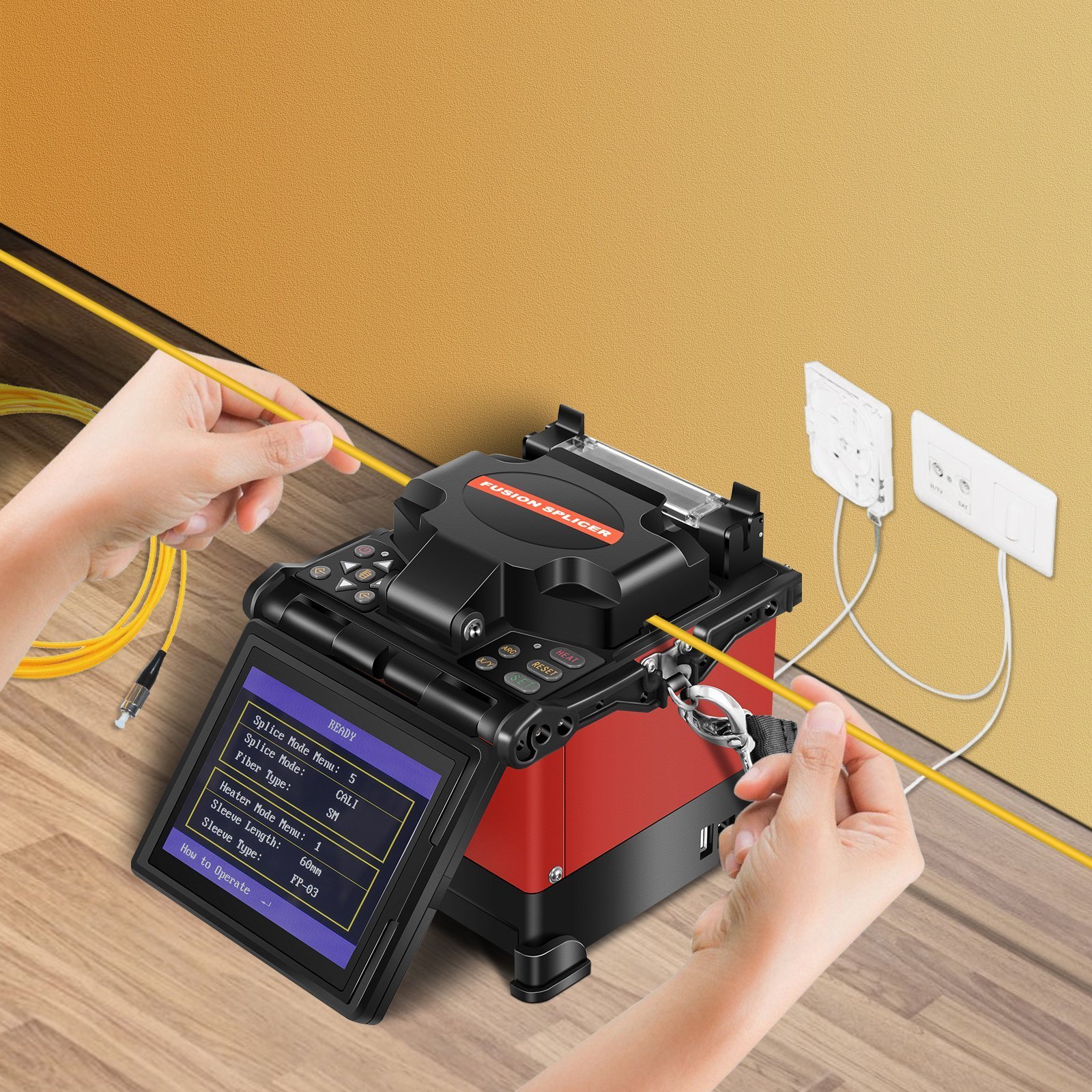

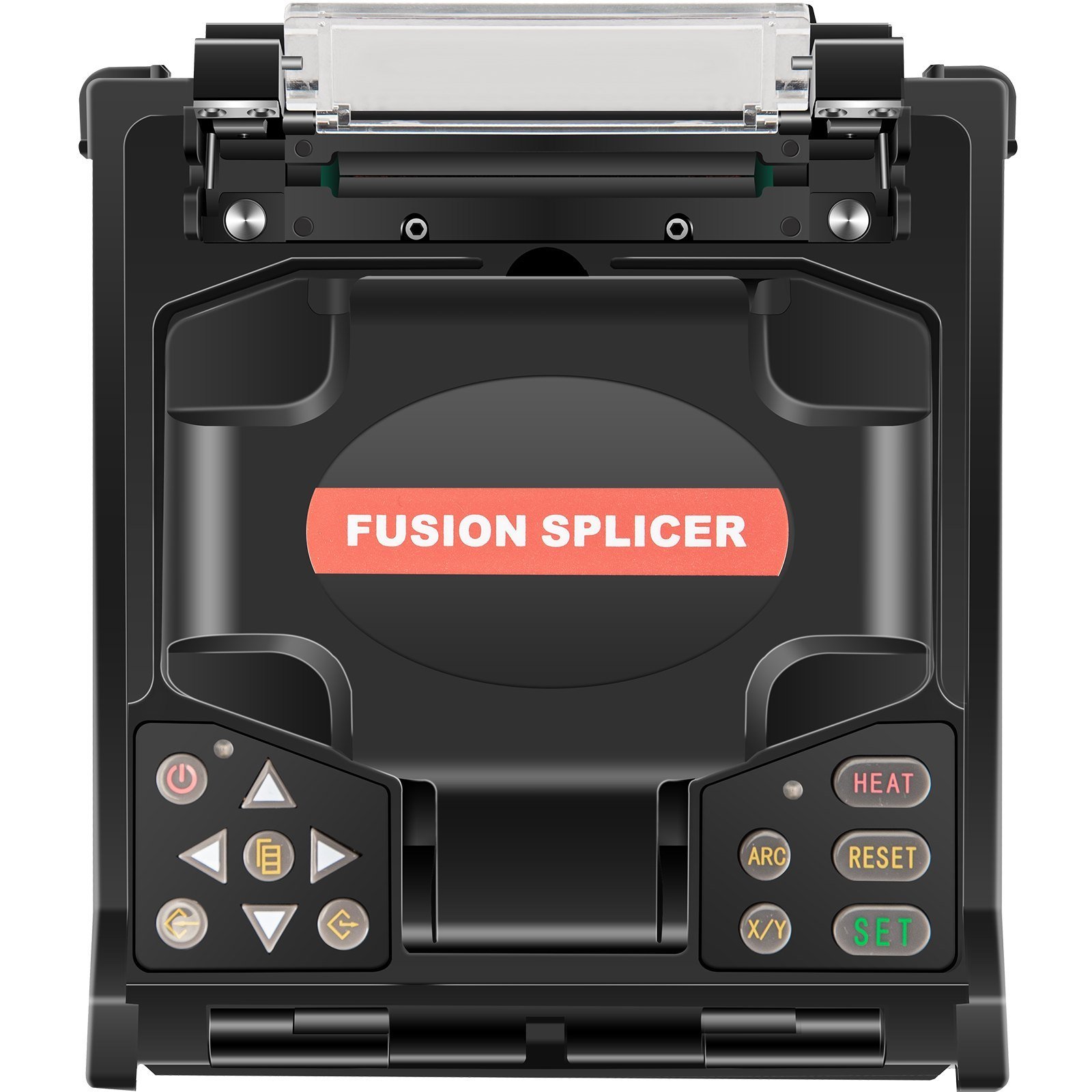

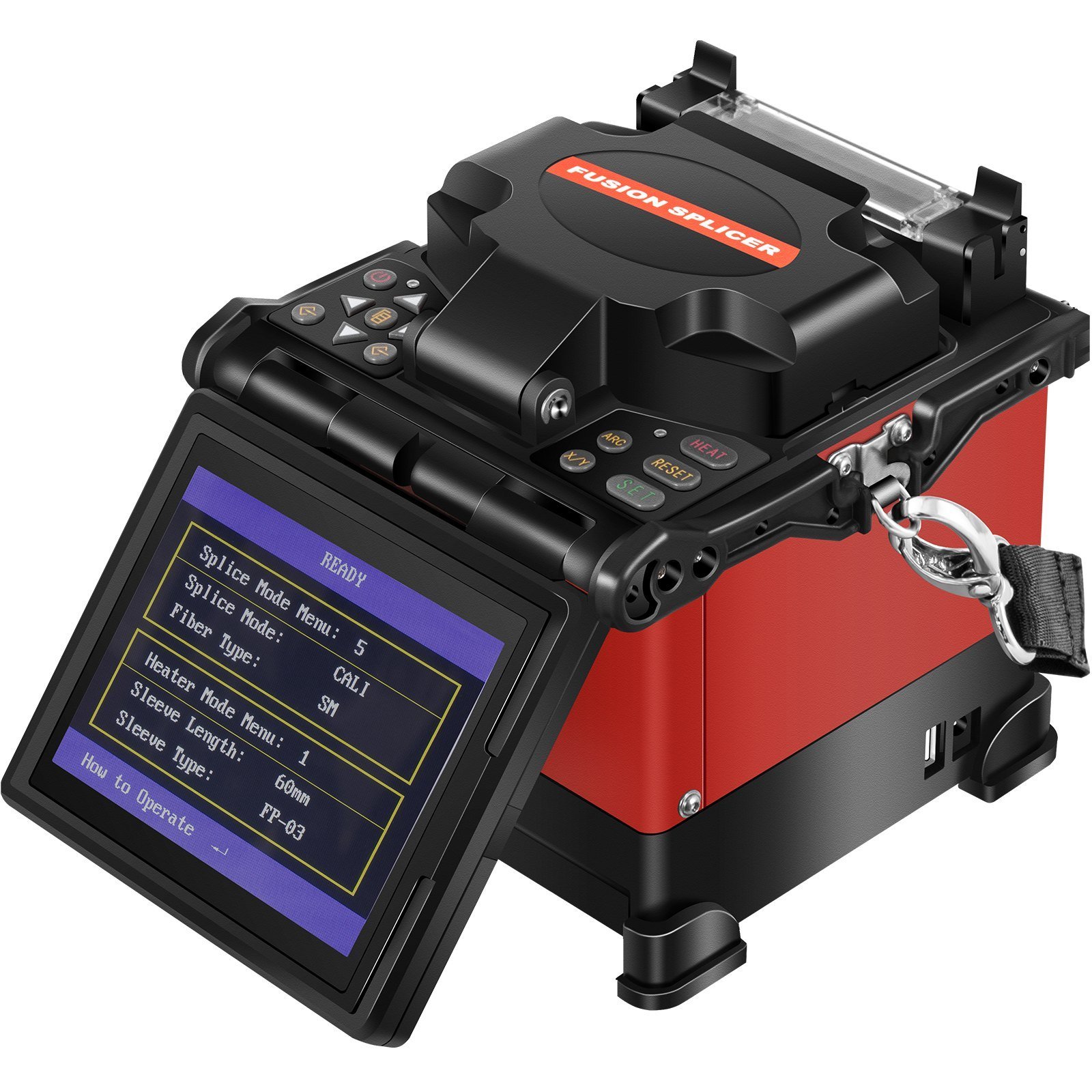

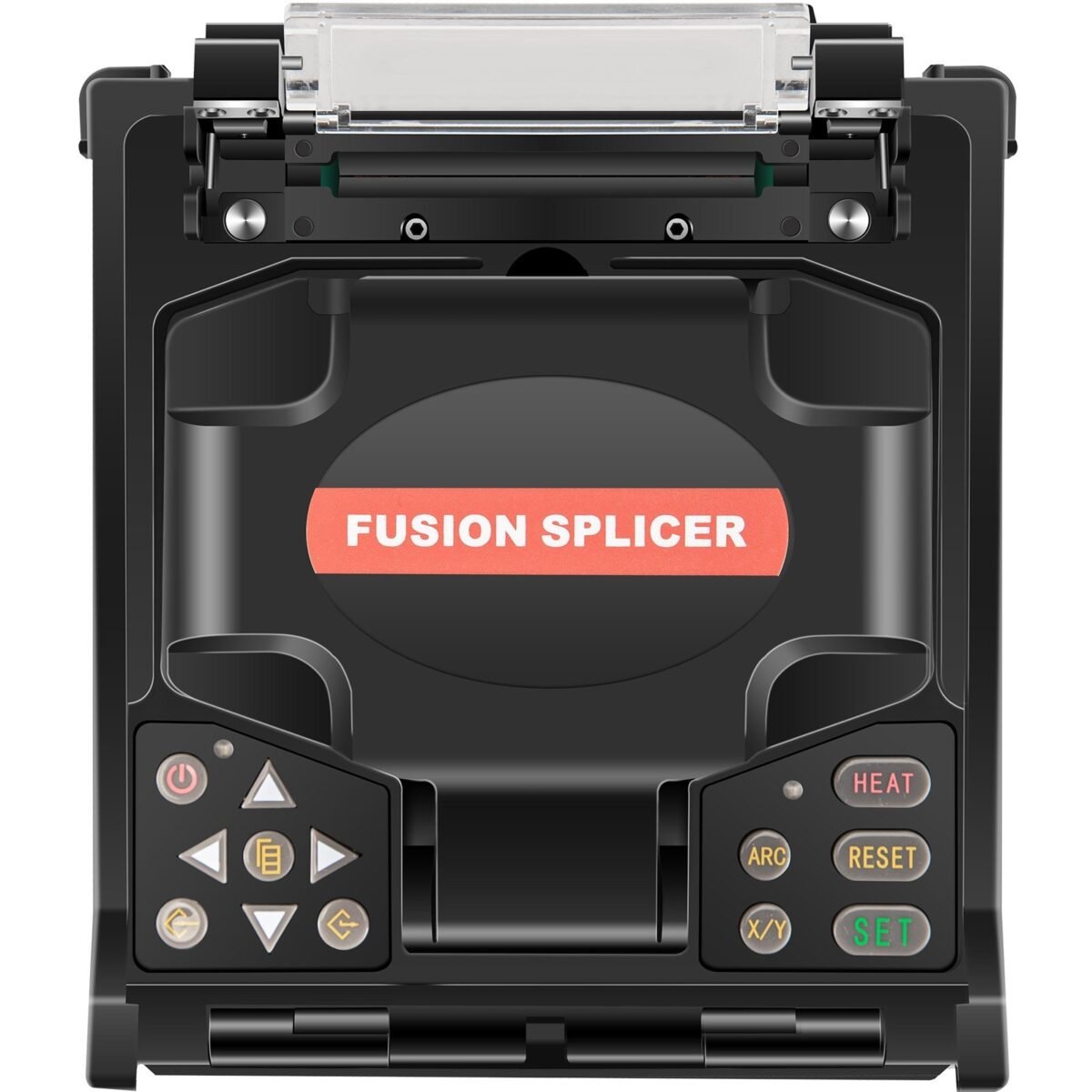

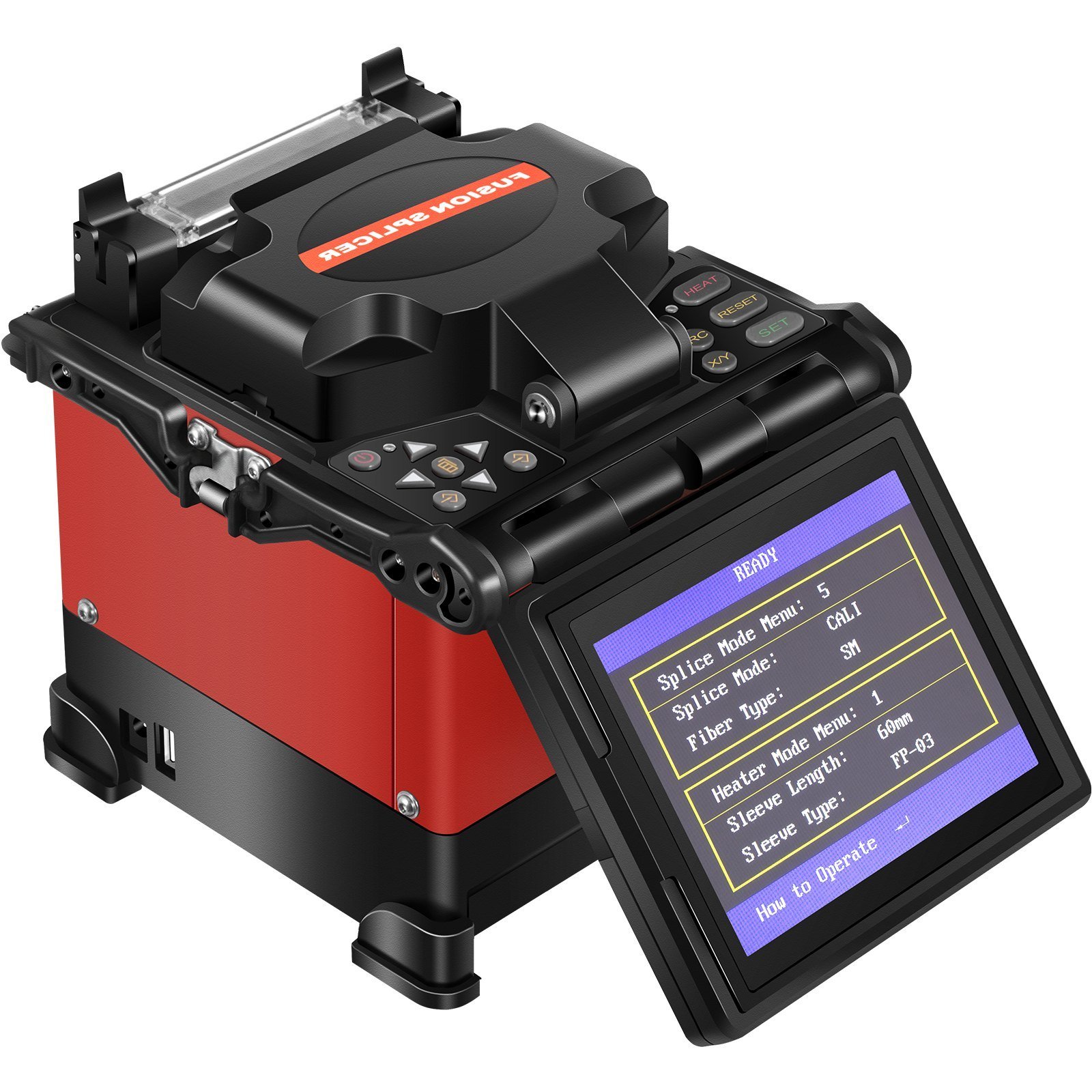

VEVOR JW4108S Fiber Fusion Splicer

VEVOR JW4108S Fiber Fusion Splicer, Auto Focus Fiber Optic Fusion Splicer, Fusion Splicer Machine Fiber Cleaver Kit with 5″ Digital LCD Screen, 3 in 1 Optical Fiber Holder, 5200mAh High-Capacity Battery

Product Features:

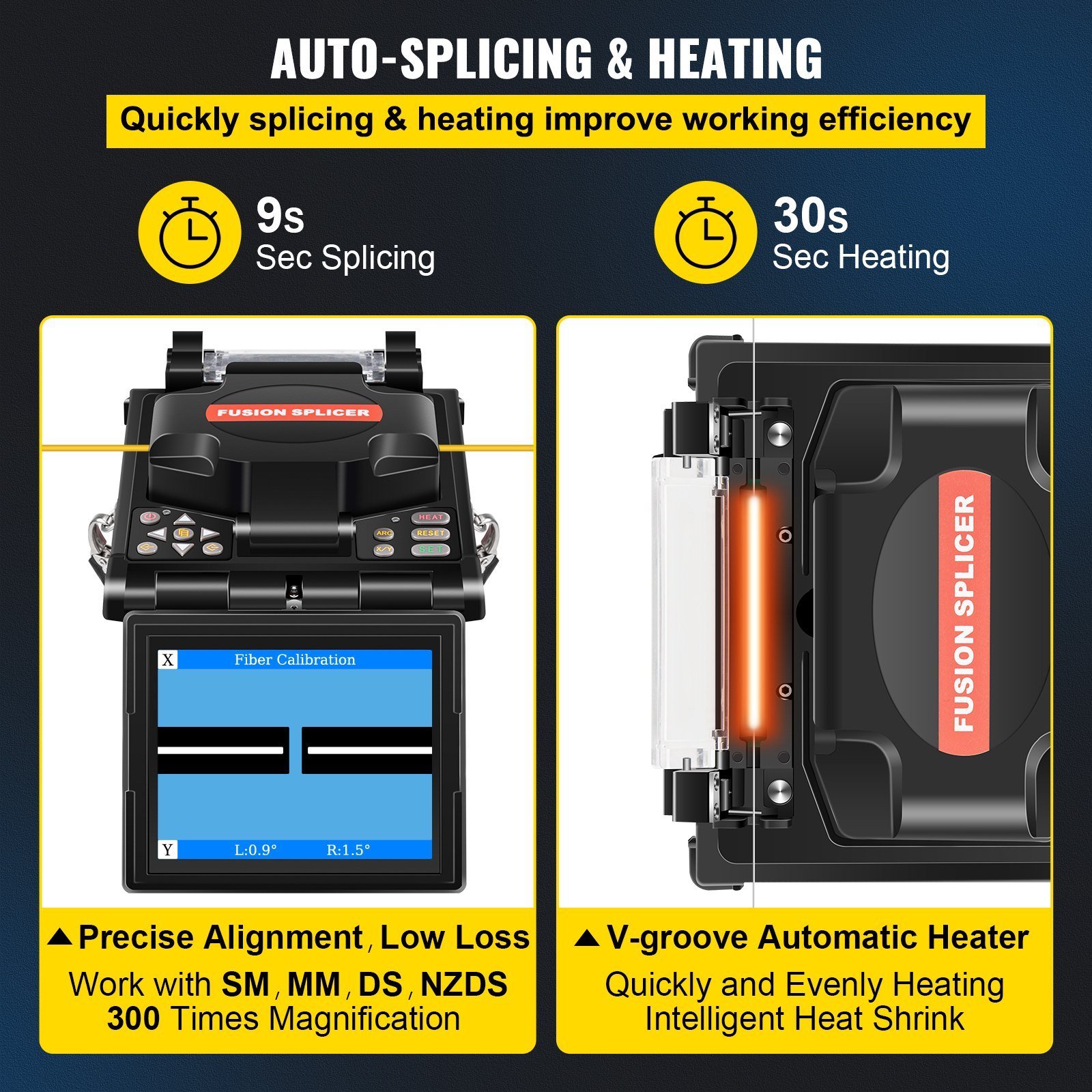

Faster Splicing & Heating: The fiber fusion splicer with a powerful high-speed motor allows quick 9 second splice time and 30 second heat time. It can continuously splice and heat about 200 times. Thus, it is time-saving in operation.

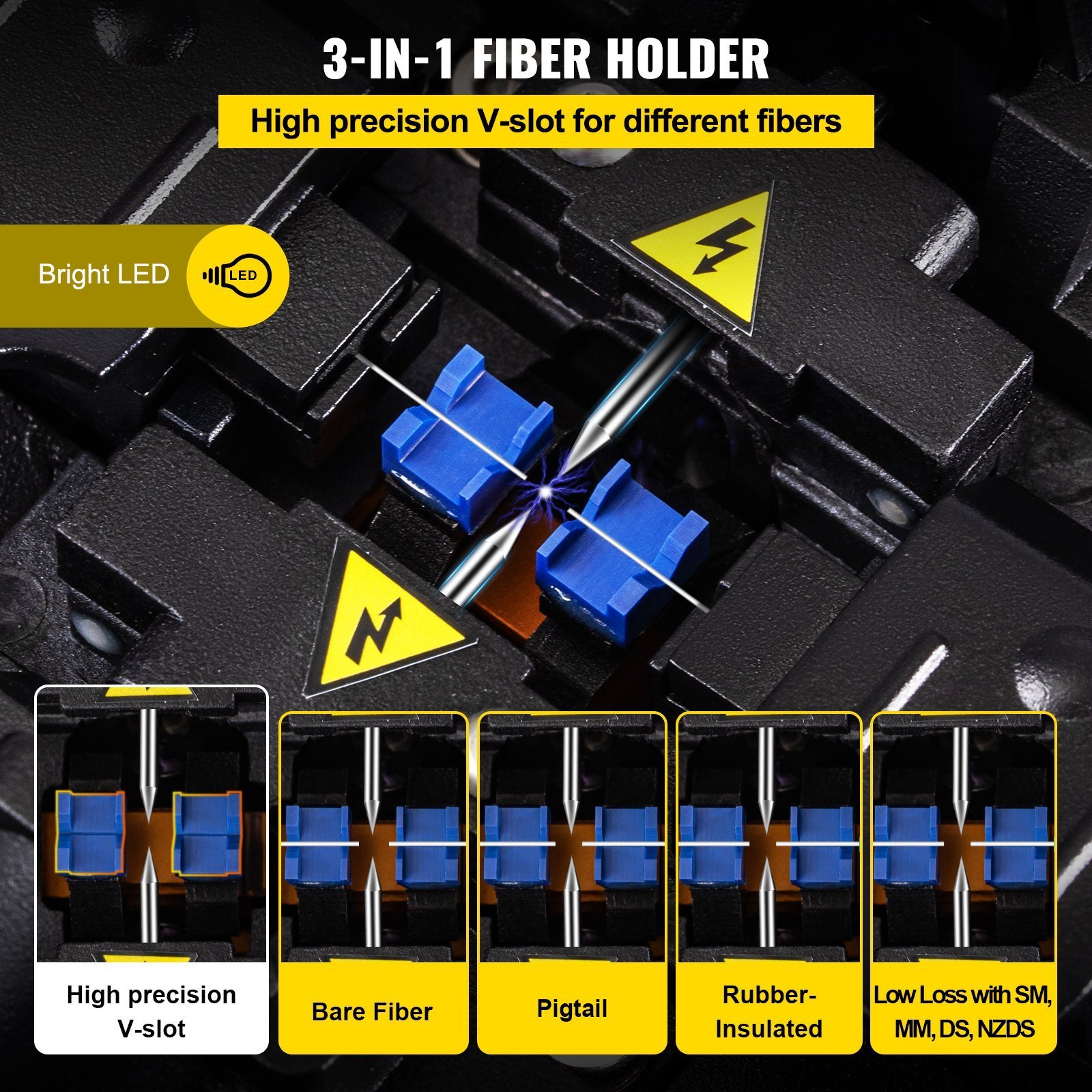

3-in-1 Fiber Holder: It is suitable for SM, MM, bare fiber, pigtail, rubber-insulated, and multi-fiber cables. Applicable Fibers: SM(G.652&G.657); MM(G.651); DS(G.657); NZDS(G.655). It features low splice loss, 0.025dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects.

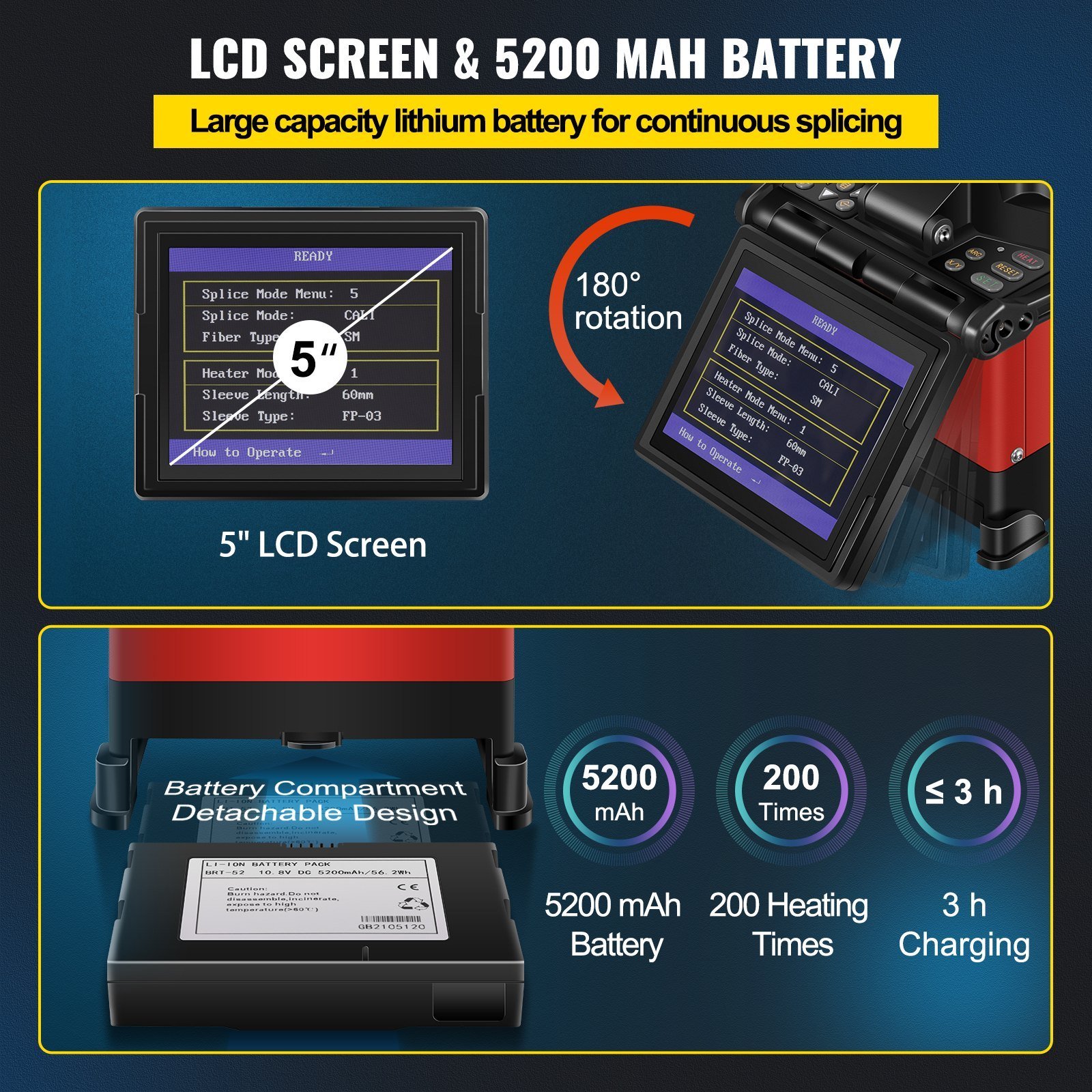

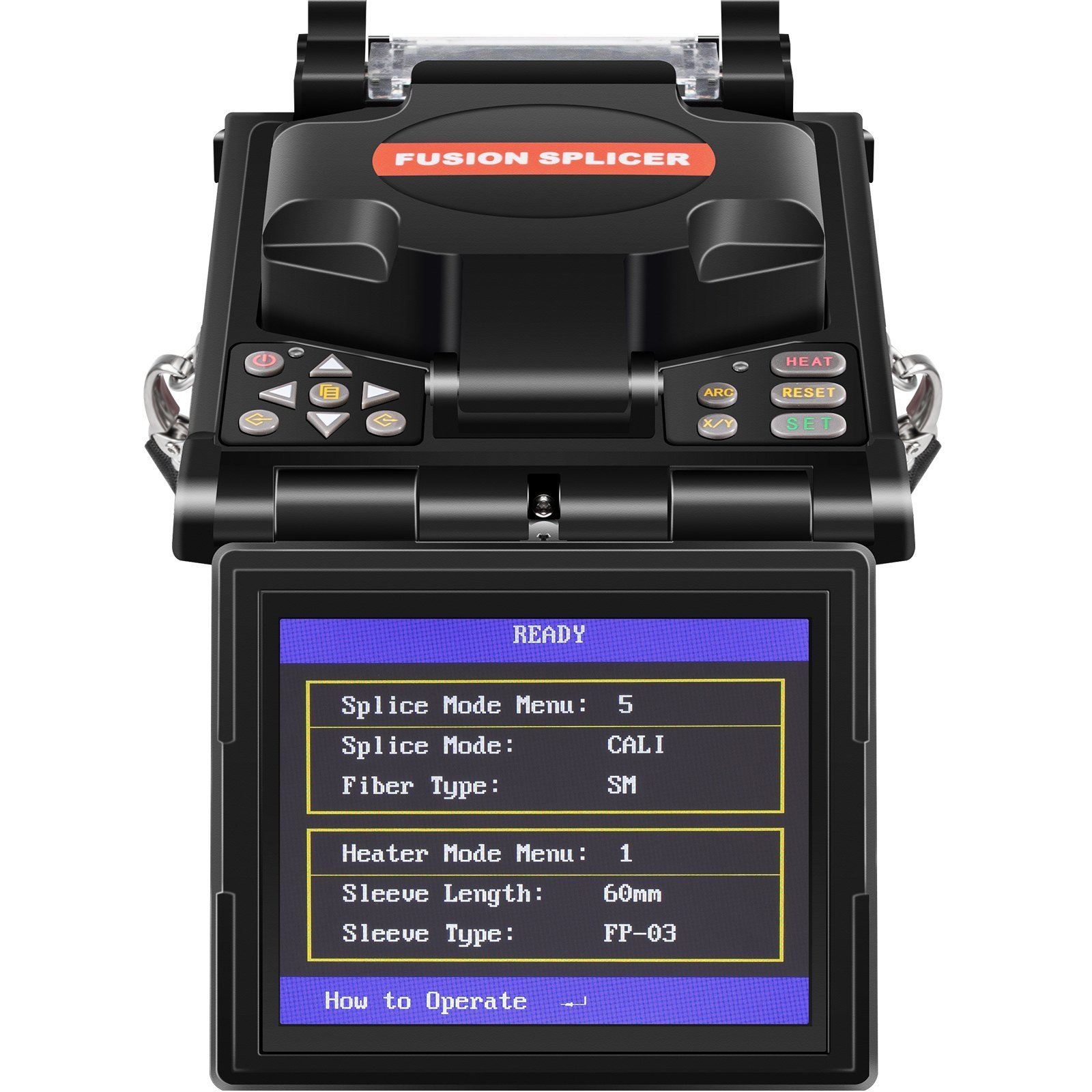

Clear LCD & 5200 mAh Battery: With 5-inch high-resolution screen, the handheld fiber fusion splicer can get up to 300 times the focus magnifications when X/Y Axis is displayed separately. Due to the 5200 mah battery, the charging time is less than 3 hours.

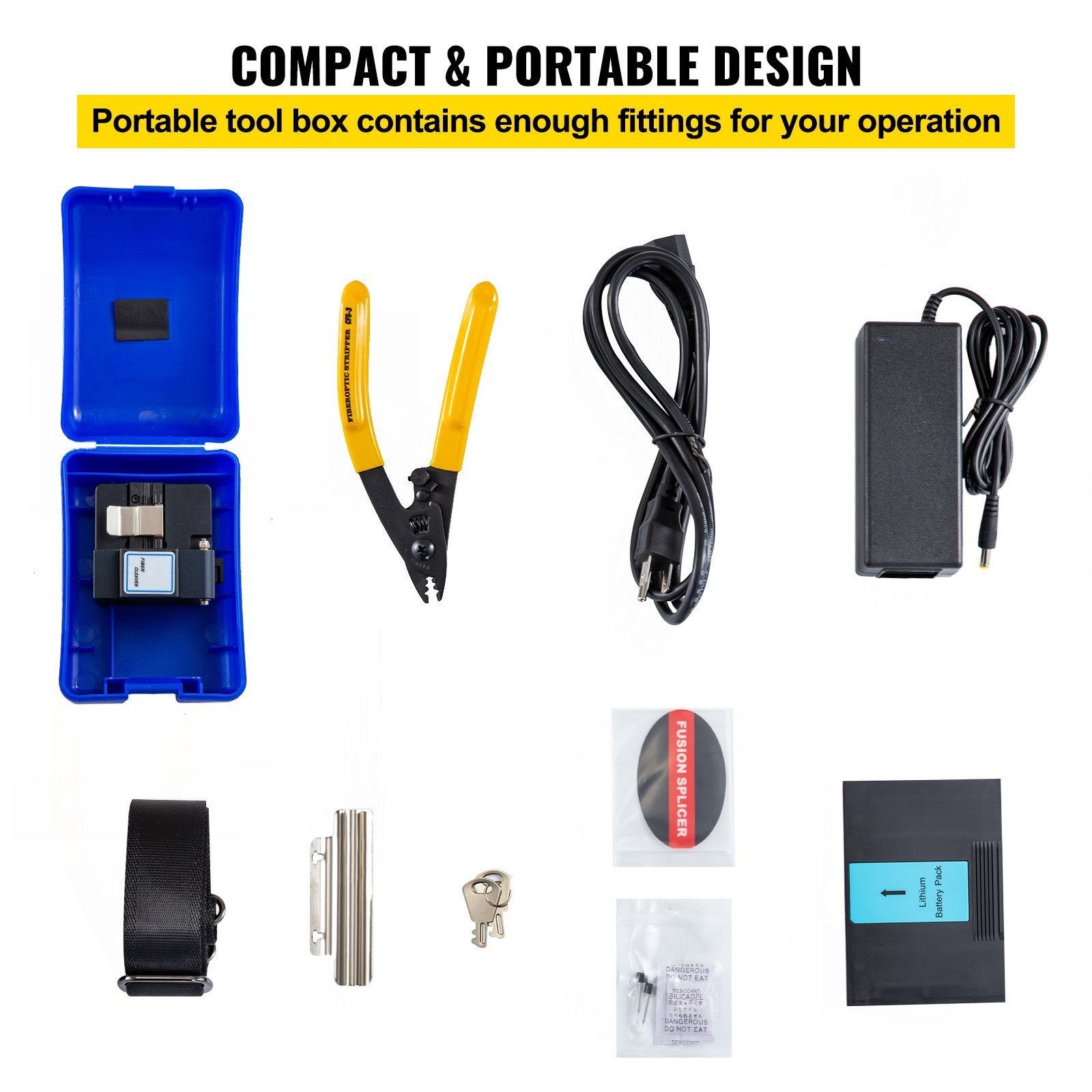

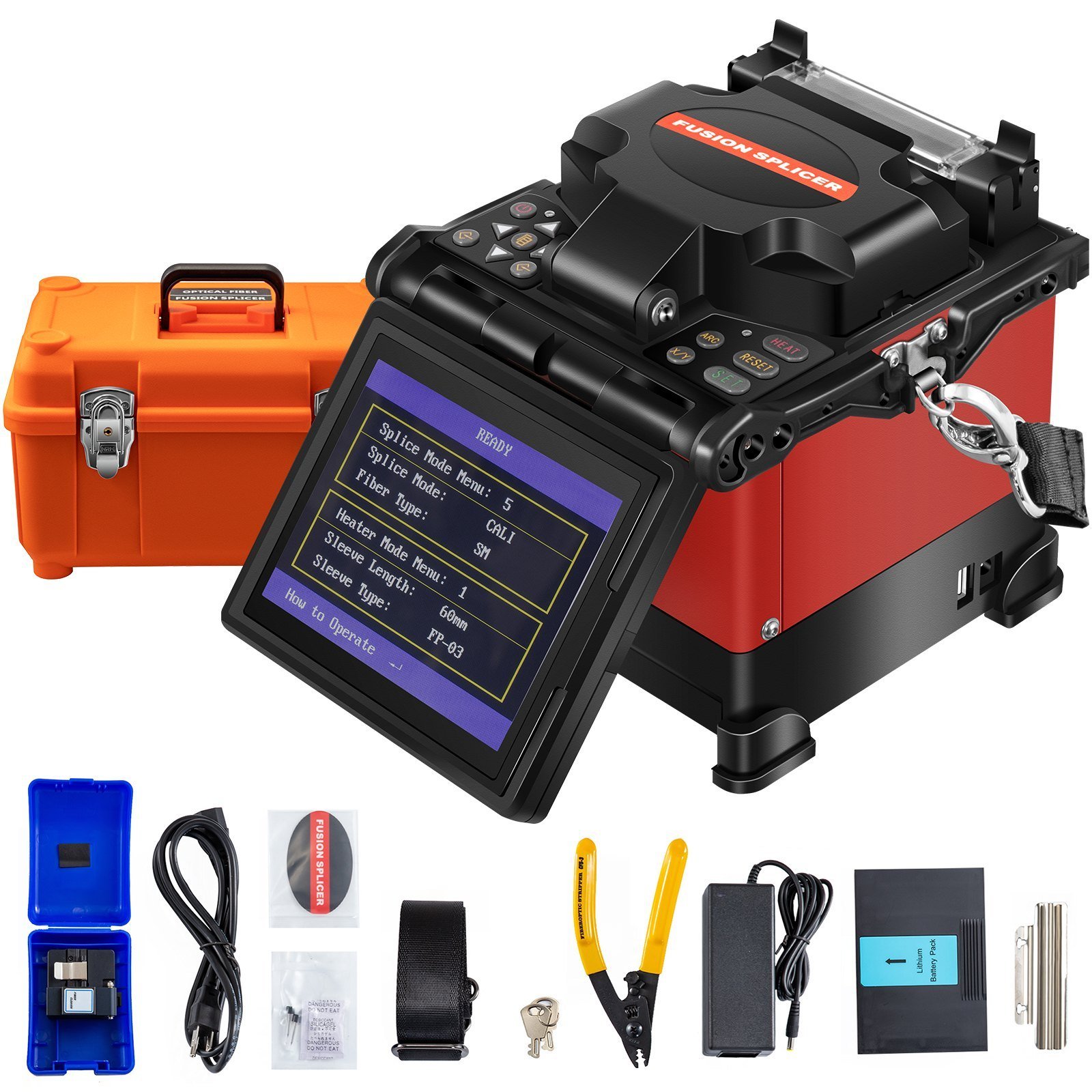

Humanization Tool Kit: The fiber fusion splicer offers excellent accessories, including fiber stripper, AC adapter, lithium battery, spare electrode, charger, cooling tray, operation manual CD, carrying case. The toolbox protects the fiber splicing tools and makes all accessories easy to store and easy to carry.

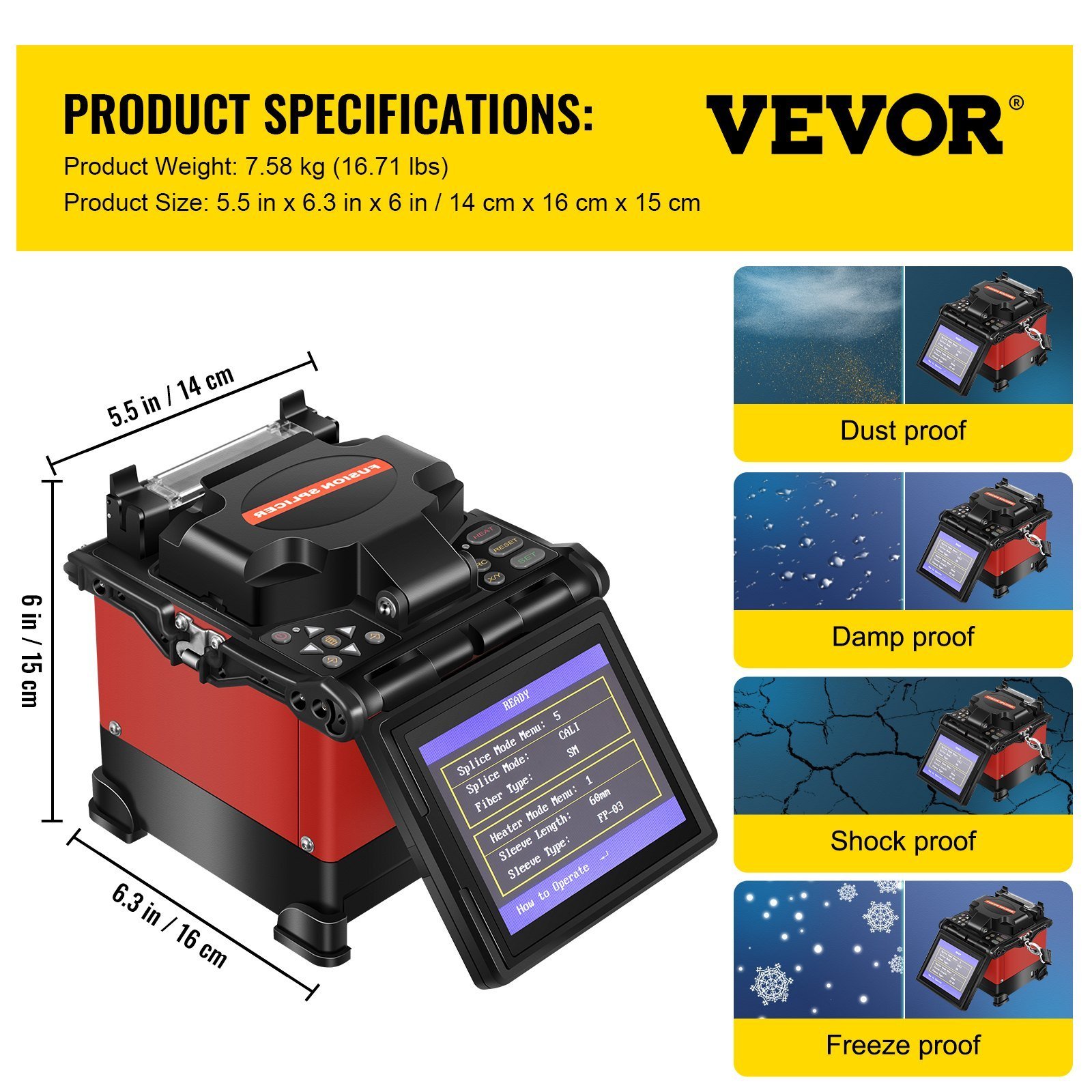

Various Application: Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. The fusion machine is especially suitable for optical fiber and cable projects, maintenance scientific research, electric power, and other communications.

Specifications

Model: JW4108S
Splicing time: ≤9s
Heating time: ≤30s
Cleaved Length: 8～16mm
Fiber Image/ Magnification: 300/200
Heat shrink bush: 60mm, 40mm and a series of miniature bush
Power supply: 12V built-in lithium battery
Battery Capacity: 5200mah
Charging time: 3h
External adapter: input AC100-240V50/60HZ, output DC13.5V/4.5A
